Qp/Qs Calculator
Created by Kaushik RabadiyaLast updated: September 24, 2026Qp/Qs ratio instantly calculates results using mvo2, pao2, pbf. Use the calculator above for instant answers in your browser.
The Qp/Qs Calculator is an essential clinical tool used by medical professionals, cardiologists, and students to evaluate the ratio of pulmonary blood flow (Qp) to systemic blood flow (Qs). By determining this ratio, healthcare providers can accurately quantify the magnitude of intracardiac or extracardiac shunts, such as atrial septal defects or ventricular septal defects, guiding critical treatment decisions.
How the Qp/Qs Calculation Works

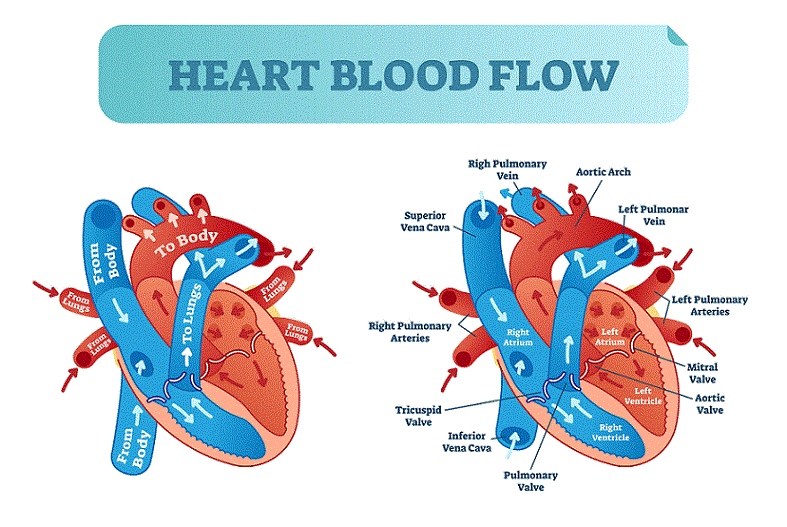

The Qp/Qs ratio evaluates whether blood flow to the lungs (pulmonary circulation) matches blood flow to the rest of the body (systemic circulation). In a normal heart without a shunt, this ratio is approximately 1.0. The calculator uses multiple methods depending on available clinical inputs. The echocardiographic method computes stroke volumes using velocity-time integrals (VTI) and vessel diameters (cross-sectional area). Specifically, pulmonary flow uses right ventricular outflow tract metrics: Qp = RVOT_VTI × π × (RVOT / 2)². Similarly, systemic flow uses left ventricular outflow tract metrics: Qs = LVOT_VTI × π × (LVOT / 2)². The final ratio is simply Qp divided by Qs. Alternative methods utilize oxygen saturation values (Fick principle) or blood flow rates (PBF/SBF).
Worked Calculation Example
Let us walk through a standard echocardiographic Qp/Qs evaluation for an adult patient. Suppose the left ventricular outflow tract (LVOT) diameter is measured at 2.0 cm, and its velocity-time integral (LVOT VTI) is 20 cm. For the pulmonary side, the right ventricular outflow tract (RVOT) diameter is 2.4 cm, and its velocity-time integral (RVOT VTI) is 25 cm. First, calculate systemic flow (Qs): radius is 1.0 cm, area is π × (1.0)² = 3.14 cm², multiplying by VTI gives Qs = 3.14 × 20 = 62.8 cm³ (or mL per beat). Next, calculate pulmonary flow (Qp): radius is 1.2 cm, area is π × (1.2)² = 4.52 cm², multiplying by VTI gives Qp = 4.52 × 25 = 113 cm³ per beat. Finally, divide Qp by Qs: 113 / 62.8 = 1.80. A Qp/Qs ratio of 1.80 indicates significant left-to-right shunting, suggesting further clinical investigation is warranted.
Clinical Tips and Best Practices
Ensure precise diameter measurements of the outflow tracts, as squaring the radius in the area formula magnifies measurement errors significantly. Always trace the envelope of the VTI carefully along the modal velocity for accurate stroke volume estimation. Keep in mind that severe valve regurgitation or arrhythmias can skew stroke volume calculations, making oximetry-based verification helpful in complex cases.
FAQs
Are cardiac shunts found in other animals?
Yes, cardiac shunts and analogous vascular pathways are quite common across the animal kingdom. For instance, reptiles possess anatomical structures like the foramen of Panizza that allow controlled shunting of blood, which helps regulate diving physiology and oxygen conservation. In mammalian fetuses, temporary shunts such as the ductus arteriosus and foramen ovale are entirely normal and necessary for proper intrauterine development before closing after birth.
How common are congenital heart defects?
Congenital heart defects represent the most frequent type of birth defect globally, affecting roughly one percent of all live births. These conditions range from mild valve abnormalities that require no intervention to complex cyanotic malformations requiring immediate surgical care in neonates. Advances in prenatal screening and echocardiography have dramatically improved early detection rates and long-term survival outcomes for affected individuals.
What are common adverse effects of a cardiac shunt?
Significant uncorrected shunts can lead to volume overload in specific heart chambers, potentially causing progressive chamber enlargement, heart failure, and pulmonary hypertension. If pulmonary pressure eventually exceeds systemic pressure, a reversal of blood flow known as Eisenmenger syndrome can occur. This reversal results in severe cyanosis, chronic fatigue, and long-term multi-organ complications, highlighting why timely diagnosis using tools like the Qp/Qs ratio is crucial.
Can congenital heart defects be prevented?
While many congenital heart defects arise from complex genetic factors that cannot be directly prevented, certain risk-reduction strategies exist during pregnancy. Expecting mothers can lower potential risks by managing chronic conditions like diabetes, avoiding alcohol and tobacco, steering clear of known teratogenic medications, and ensuring adequate daily intake of folic acid during the crucial early stages of embryonic development.
Based on 1 source
- Measurement of systemic and pulmonary blood flow and QP/QS ratio using Doppler and two-dimensional echocardiography. — Sanders SP, Yeager S, Williams RG.
Formula verified against WHO/CDC clinical references — all calculations use deterministic, standards-based formulas.
