Endotracheal Tube Size Calculator

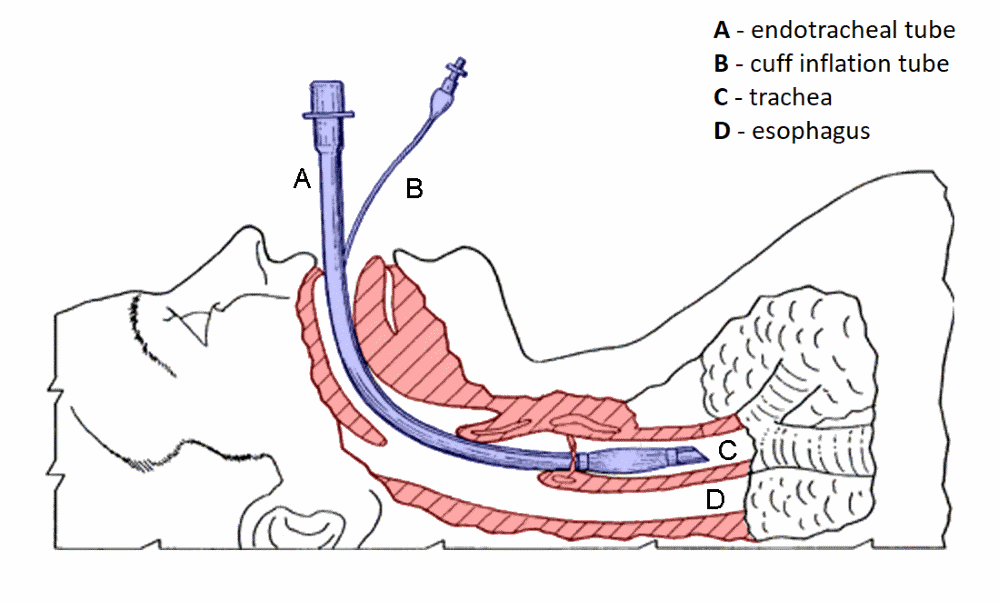

Airway sizing relies heavily on anthropometric data, with age serving as the primary metric for pediatric patients. The standard mathematical estimations implemented in this calculator are derived from established pediatric advanced life support guidelines. For an uncuffed endotracheal tube, the internal diameter is estimated using the formula: Size (uncuffed) = (Age in years / 4) + 4. Because cuffed tubes require a slightly smaller outer diameter to accommodate the cuff while maintaining identical airflow, the cuffed size is typically one-half to one size smaller, calculated as: Size (cuffed) = Size (uncuffed) - 0.5 or 1. Finally, the oral insertion depth—how far the tube should be advanced past the lips—is generally estimated at three times the internal tube diameter, or expressed via age-based approximations such as Insertion Depth (cm) = (Age / 2) + 12.

Consider a clinical scenario involving a pediatric patient who is 6 years old. To find the correct endotracheal tube dimensions, we apply the standard formulas step by step. First, calculate the uncuffed tube size: (6 / 4) + 4 = 1.5 + 4 = 5.5 mm internal diameter. Next, determine the cuffed tube size by subtracting 0.5 to 1 mm from the uncuffed value: 5.5 - 0.5 = 5.0 mm internal diameter. Finally, calculate the optimal oral insertion depth using the age-based formula: (6 / 2) + 12 = 3 + 12 = 15 cm at the teeth or lips. Having these figures calculated beforehand allows the medical team to select the exact equipment rapidly and secure the airway without delay.

Always have backup tubes available that are one size smaller and one size larger than your calculated estimate to account for anatomical variations. When utilizing cuffed tubes, routinely monitor cuff pressure using a manometer to keep pressures between 20 and 30 cmH2O, preventing tracheal mucosal ischemia. Remember that mathematical formulas provide estimates only; direct visualization via laryngoscopy and confirmation of bilateral breath sounds or end-tidal CO2 remain the absolute gold standards for verifying correct tube placement.
