ECG Boxes to Seconds Calculator

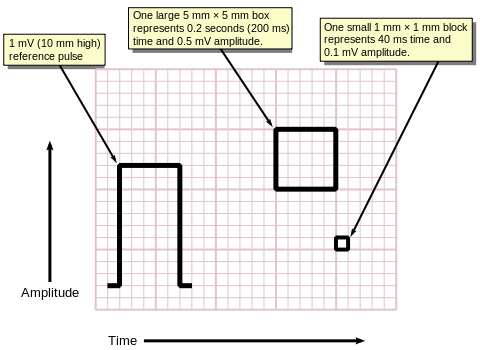

Standard electrocardiogram paper moves at a fixed speed, typically 25 millimeters per second. The grid consists of small boxes (1 mm wide, representing 0.04 seconds) and large boxes (5 mm wide, representing 0.20 seconds). The mathematical relationship relies on the number of boxes, the box type scale factor, and the paper speed. The core formula used is Duration = (NumberOfBoxes * BoxType) / PaperSpeed, where the time duration is scaled to milliseconds or seconds depending on your chosen parameters.

Imagine you are analyzing an ECG strip recorded at the standard paper speed of 25 mm/s, and you want to find the time duration spanned by 5 large boxes. Here, your NumberOfBoxes is 5, your BoxType represents a large box (0.2 seconds equivalent or 5 mm), and your PaperSpeed is 25 mm/s. Multiplying 5 large boxes by their millimeter width gives 25 mm. Dividing 25 mm by the paper speed of 25 mm/s yields a total duration of exactly 1.0 second. This straightforward ratio allows you to instantly determine the precise intervals of P waves, QRS complexes, and QT spans.

Always double-check the calibration settings of the electrocardiogram machine, as some pediatric or high-rate recordings operate at a paper speed of 50 mm/s instead of the standard 25 mm/s. Ensure you distinguish clearly between small and large grid boxes when counting intervals to prevent magnitude scaling errors. Practice manual counting alongside digital tools to build strong foundational interpretation skills.
