Upper Control Limit Calculator

Statistical Process Control (SPC) relies on establishing boundaries that distinguish common cause variation from special cause variation. The Upper Control Limit (UCL) represents the maximum expected threshold of a stable process. The standard formula used by this calculator is:

UCL = Mean + (Control Limit Multiplier × Standard Deviation)

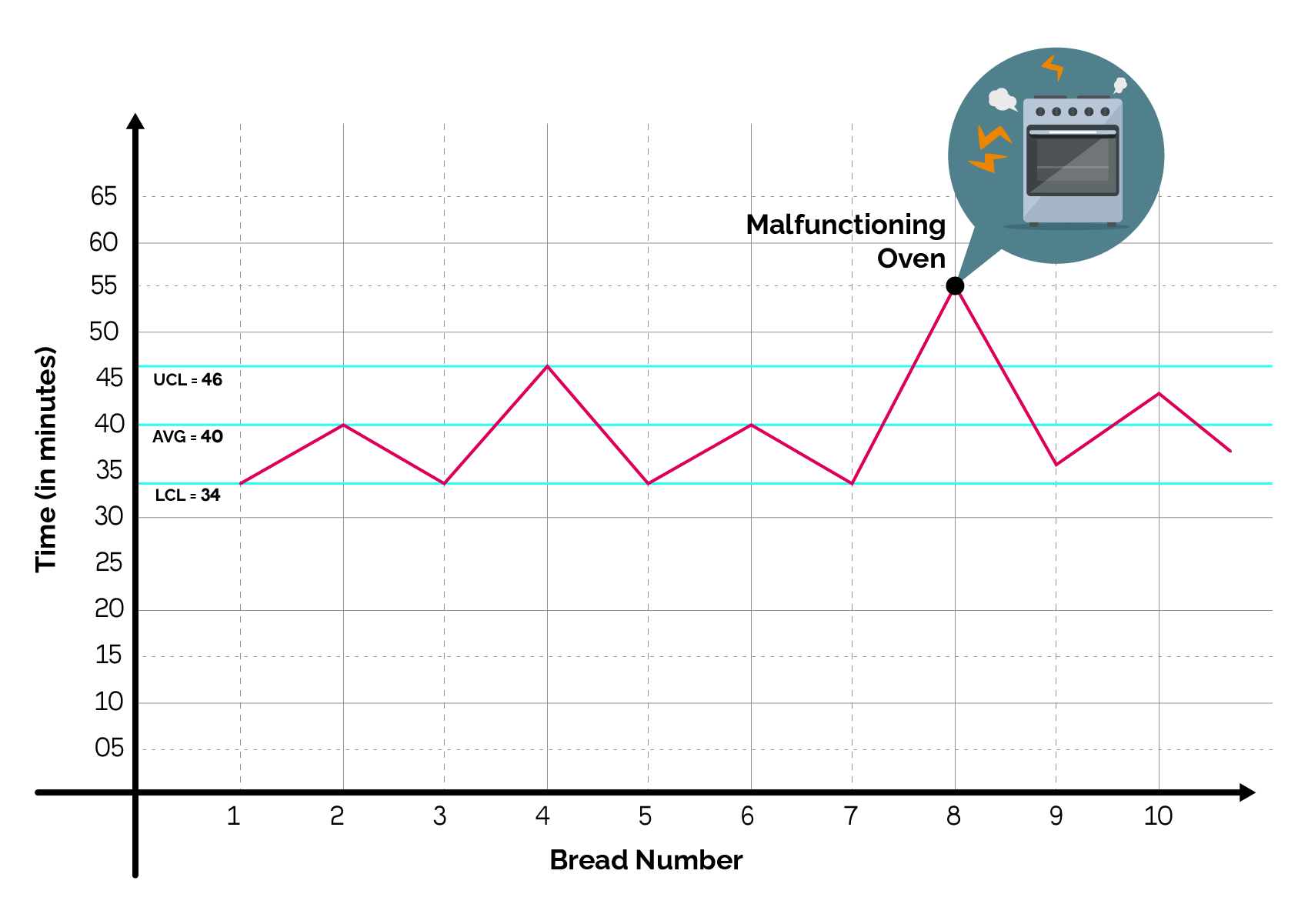

Conversely, the lower control limit (LCL) establishes the minimum boundary using: LCL = Mean - (Control Limit Multiplier × Standard Deviation). Together, these boundaries create a control chart framework.

Imagine you are monitoring the fill volume of a beverage bottling plant. Historical data indicates that your target process mean is 500 milliliters with a standard deviation of 2.5 milliliters. You want to establish standard 3-sigma control limits to monitor your production line.

1. Identify your core variables: Mean (μ) = 500, Standard Deviation (σ) = 2.5, and Control Limit Multiplier (L) = 3.

2. Apply the formula: UCL = 500 + (3 × 2.5).

3. Calculate the product: 3 × 2.5 = 7.5.

4. Add to the mean: 500 + 7.5 = 507.5.

Your Upper Control Limit is 507.5 mL. Any bottle measured above this threshold indicates a special cause variation that requires investigation.

Ensure your dataset represents a process that is already in a state of statistical control before calculating your baseline limits. Avoid using skewed data, as standard deviation assumes a normal distribution. Regularly recalculate your control limits whenever you implement permanent process improvements or equipment upgrades.
