Hull Speed Calculator

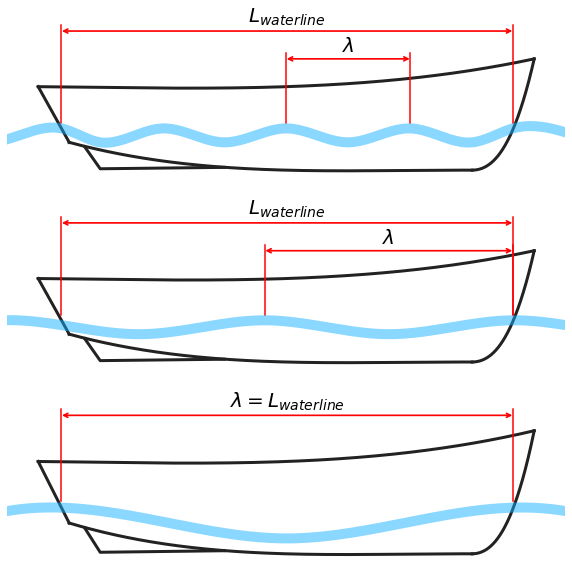

For displacement hulls, maximum speed is restricted by the bow and stern waves generated as the vessel moves through the water. As speed increases, the wavelength between the bow wave and stern wave grows until it matches the vessel's waterline length. The standard empirical formula for this relationship is:

Hull Speed (knots) = 1.34 × √(LWL)

Where LWL is the waterline length measured in feet. The constant 1.34 is derived from the physics of gravity and wave propagation in deep water.

Imagine you are evaluating a cruising sailboat with a waterline length (LWL) of 36 feet. To find its theoretical maximum displacement hull speed, follow these steps:

1. Take the square root of the waterline length: √36 = 6.

2. Multiply this result by the standard constant of 1.34: 6 × 1.34 = 8.04.

3. The resulting hull speed is approximately 8.04 knots. Attempting to exceed this speed requires a disproportionately massive increase in horsepower to lift the hull onto a plane.

Keep these expert tips in mind when using hull speed calculations for vessel management:

• Measure Accurately: Always use the waterline length (LWL) when the boat is loaded in cruising trim, not the total length overall (LOA).

• Planing vs. Displacement: Remember that this formula applies strictly to displacement hulls. Planing hulls can easily exceed this limit once sufficient power is applied to rise above the water's surface.

• Efficiency Sweet Spot: Operating just below your calculated hull speed offers the best balance of fuel economy and travel time in heavy displacement vessels.
