Vertical Exaggeration Calculator

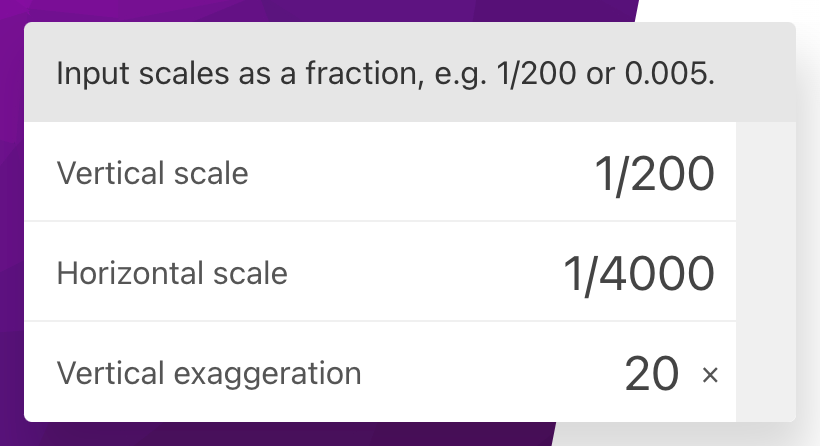

Vertical exaggeration (VE) is a dimensionless factor representing the degree to which the vertical scale exceeds the horizontal scale on a map, cross-section, or relief model. The core formula requires dividing the vertical scale by the horizontal scale: VE = Vertical Scale / Horizontal Scale. Each individual scale is computed by dividing its respective base unit by its map representation unit. When the horizontal scale and vertical scale are identical, the vertical exaggeration is 1, indicating a true-to-life, unskewed representation of the terrain.

Imagine you are drafting a geological cross-section of a mountain range. Your horizontal scale is set so that 1 unit on the paper represents 24,000 units in reality (1:24,000), meaning your horizontal scale factor is 0.0000416. For your vertical dimension, you choose a scale where 1 unit represents 4,800 units in reality (1:4,800), giving a vertical scale factor of 0.0002083. To find the vertical exaggeration, divide the vertical scale by the horizontal scale: 0.0002083 / 0.0000416, which results in a vertical exaggeration of 5. This means the relief features in your cross-section appear five times taller than they actually are relative to their width.

Always ensure your base measurements and representation units use the exact same unit of measurement (such as inches or centimeters) before calculating your individual scales. Be mindful that high vertical exaggeration can visually distort slope angles, potentially making gentle hills look like sheer cliffs. When publishing scientific profiles or engineering cross-sections, always explicitly state the calculated vertical exaggeration value in the figure legend so readers can interpret slopes accurately.
