Speaker Box Calculator

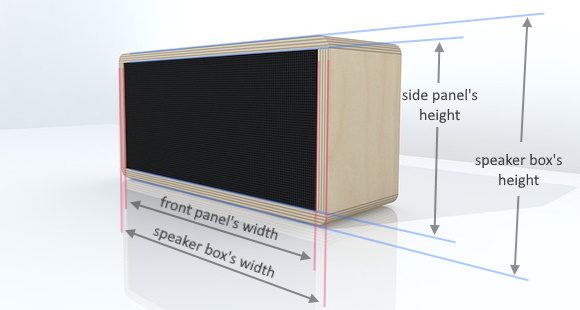

Building an effective enclosure requires distinguishing between external dimensions and internal usable air space. The internal volume is derived by taking your outer box dimensions (width, height, and depth), subtracting twice the material thickness for each dimension, and then accounting for internal hardware. The core equations used are:

Internal Volume: Volume = (Width - 2 * Thickness) * (Depth - 2 * Thickness) * (Height - 2 * Thickness) - Port Volume

Driver Displacement: The physical mass of the speaker magnet and cone takes up air space inside the box. This is calculated using geometric approximations for truncated cones and cylinders, and then subtracted from the raw internal volume to find the Net Volume Total.

Let us walk through designing a sealed subwoofer enclosure. Suppose you are using 0.75-inch thick MDF with target external dimensions of 16 inches wide, 14 inches high, and 12 inches deep. You plan to install one driver that displaces 0.08 cubic feet of air, with no port (sealed box).

Step 1: Compute Internal Dimensions.
Internal Width = 16 - (2 * 0.75) = 14.5 inches.
Internal Height = 14 - (2 * 0.75) = 12.5 inches.
Internal Depth = 12 - (2 * 0.75) = 10.5 inches.

Step 2: Calculate Raw Internal Volume.
Raw Volume = 14.5 * 12.5 * 10.5 = 1,903.125 cubic inches. Dividing by 1,728 (cubic inches per cubic foot) gives approximately 1.101 cubic feet.

Step 3: Subtract Driver Displacement.
Net Volume = 1.101 - 0.08 = 1.021 cubic feet. This final net volume tells you exactly how much air space your subwoofer will interact with inside the finished cabinet.

Account for All Internal Objects: Always include bracing, crossovers, and the motor structure of the subwoofer in your displacement calculations. Ignoring these can shrink your net volume by 10% or more, altering tuning frequencies.

Choose Rigid Materials: Medium-density fiberboard (MDF) and Baltic birch plywood are industry favorites because they minimize wall flexing, which robs your system of clean bass response.

Seal Every Seam: Air leaks act like unwanted ports and severely degrade low-frequency performance. Use generous amounts of wood glue and silicone sealant on all interior joints.
