Op-Amp Gain Calculator
Created by Kaushik RabadiyaLast updated: September 26, 2026Op-amp gain instantly calculates results using invert gain, noninvert gain, resistance feedback. Use the calculator above for instant answers in your browser.
The Op-Amp Gain Calculator is an essential engineering tool designed to determine the voltage amplification of operational amplifiers in both inverting and non-inverting configurations. By entering your feedback and input resistance values, students, electronics hobbyists, and circuit designers can instantly compute signal amplification without manual formula manipulation. This tool simplifies analog circuit design, helping you predict output behavior and match components accurately to your exact project specifications.
How Operational Amplifier Gain Works
An operational amplifier (op-amp) utilizes external resistors to control its voltage gain, which determines how much an input signal is amplified. The calculation method depends entirely on how the input signal is applied to the circuit configuration. For an inverting amplifier, the input signal enters the inverting terminal, and the gain formula is expressed as:
A_v = - (R_f / R_in)
Where R_f is the feedback resistance and R_in is the input resistance. The negative sign signifies a 180-degree phase inversion in the output signal. Conversely, for a non-inverting amplifier, the signal enters the non-inverting terminal, yielding a positive gain calculated as:
A_v = 1 + (R_f / R_in)
This configuration produces an output signal that remains in phase with the input while providing a minimum gain of unity (1).
Worked Calculation Example
Let us walk through a practical calculation for a non-inverting op-amp configuration. Imagine you are designing an audio preamplifier stage and select a feedback resistor (R_f) of 47 kilo-ohms and an input resistor (R_in) of 10 kilo-ohms.
Step 1: Identify your configuration type. You are building a non-inverting circuit.
Step 2: Apply the non-inverting gain equation. The formula is A_v = 1 + (R_f / R_in).
Step 3: Substitute the resistor values into the equation. A_v = 1 + (47,000 / 10,000).
Step 4: Perform the division and addition. 47,000 / 10,000 = 4.7, and 1 + 4.7 = 5.7.
Your total voltage gain is 5.7, meaning a 0.5-volt input signal will be amplified to approximately 2.85 volts at the output.
Practical Tips for Op-Amp Circuit Design
When selecting resistors for your op-amp gain calculations, always keep component tolerances in mind; using 1% metal film resistors ensures greater precision in your final output voltage. Avoid using excessively large resistance values (above 1 mega-ohm), as high thermal noise and input bias currents can degrade signal integrity. Lastly, always verify that your resulting output voltage does not exceed the op-amp power supply rail limits to prevent signal clipping and waveform distortion.
FAQs
What are the characteristics of an ideal op-amp?
An ideal operational amplifier possesses infinite open-loop gain, infinite input impedance, zero output impedance, infinite bandwidth, and zero offset voltage. These theoretical traits simplify circuit analysis by assuming no current flows into the input terminals and that the voltage difference between the inverting and non-inverting pins is virtually zero when negative feedback is applied.
What are op-amps used for?
Operational amplifiers are remarkably versatile building blocks in analog electronics. They are widely used for signal conditioning, performing mathematical operations such as addition, subtraction, integration, and differentiation, filtering audio frequencies, acting as voltage followers for impedance buffering, and driving sensors or analog-to-digital converters.
What is thermal drift in an op-amp?
Thermal drift refers to the unwanted variation in an op-amp's output voltage caused by changes in operating temperature. Because semiconductor device properties fluctuate with heat, internal imbalances create a shifting input offset voltage. Precision applications often require low-drift components or chopper-stabilized op-amps to minimize this effect.

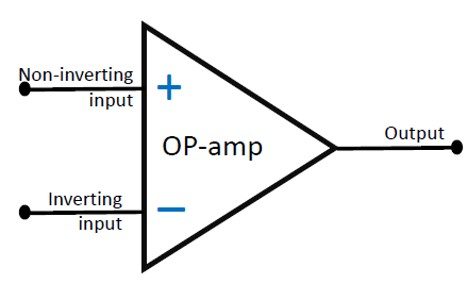

Why is an op-amp called a differential amplifier?
An op-amp is fundamentally a differential amplifier because it amplifies the difference in voltage between its two input terminals—the inverting input and the non-inverting input. It completely rejects any voltage signals that are common to both inputs, a critical characteristic known as common-mode rejection that helps eliminate electrical noise from circuits.
