GSD Calculator – Ground Sample Distance

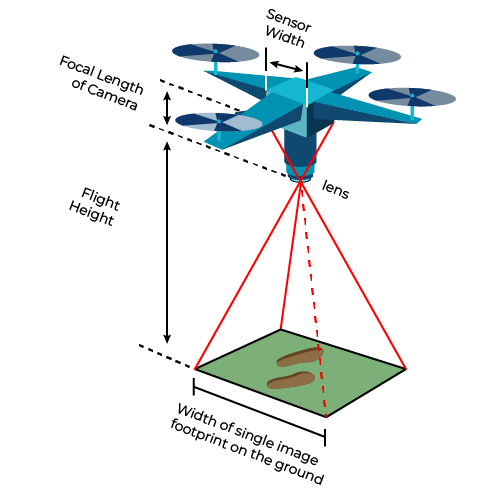

The mathematics behind aerial imaging rely on the principles of optical geometry and similar triangles between your camera sensor and the ground. The standard formula used to compute GSD is: GSD = (Altitude × Sensor Width) / (Focal Length × Image Width). In this equation, Altitude is the height of the drone above the target ground level, Sensor Width represents the physical horizontal dimension of the camera sensor, Focal Length is the distance from the lens to the sensor, and Image Width is the horizontal pixel resolution of the captured photo. Ensuring your units match—typically converting meters to centimeters—is crucial for an accurate calculation.

Imagine you are preparing a photogrammetry mission using a drone with a standard 1-inch sensor. Your camera sensor width is 13.2 mm, and the focal length of your lens is 8.8 mm. Your image width resolution is set to 5464 pixels, and you plan to fly at an altitude of 120 meters above ground level. To find the GSD, first multiply your altitude (120 m, or 12,000 cm) by the sensor width (13.2 mm, or 1.32 cm), resulting in 15,840. Next, multiply your focal length (8.8 mm, or 0.88 cm) by the image width (5464 pixels), which gives 4,808.32. Dividing 15,840 by 4,808.32 yields a GSD of approximately 3.29 cm per pixel. This means every single pixel in your final orthomosaic represents roughly 3.29 centimeters of the real world.

Achieving high-resolution spatial data requires careful attention to flight planning variables. First, always verify your terrain elevation; flying at a fixed altitude above sea level rather than above ground level can cause drastic GSD variations over hilly landscapes. Second, remember that lower altitudes yield finer GSD values but require significantly more battery power, storage space, and processing time due to the higher volume of overlapping photos needed to cover the same area.
