Angle of Impact Calculator

The mathematical foundation relies on right-angle trigonometry. When a spherical droplet or projectile strikes a surface at an angle less than 90 degrees, it forms an elliptical shape rather than a perfect circle. By measuring the maximum width (minor axis) and length (major axis) of the resulting mark, we can derive the impact angle using the arcsine function. The governing formula is expressed as:

Impact Angle = arcsine(Width / Length)

In this equation, the width represents the shorter transverse axis, while the length represents the longer longitudinal axis of the elliptical pattern. As the impact angle approaches 90 degrees (perpendicular), the width and length become equal, making the ratio 1 and the arcsine equal to 90 degrees.

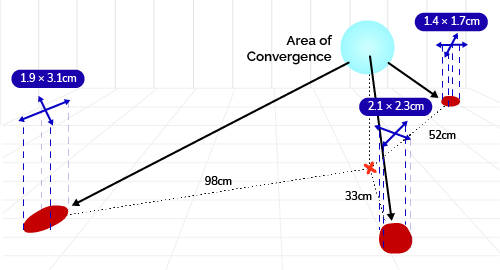

Imagine analyzing a bloodstain drop at a crime scene investigation training exercise. You measure the dimensions of the elliptical stain and find that the width is 1.5 cm and the length is 3.0 cm. To find the angle of impact, substitute these values into the mathematical formula:

1. Divide the width by the length: 1.5 / 3.0 = 0.5

2. Calculate the arcsine of 0.5: arcsine(0.5) = 30 degrees

Therefore, the angle of impact for this specific droplet is 30 degrees relative to the flat target surface.

To ensure precise results when using this calculator, always measure only the body of the stain or droplet, excluding any terminal tail or spine that may have formed during impact. Use precision measuring tools such as digital calipers or a scaled forensic loupe rather than a standard soft ruler. Finally, maintain consistent units for both length and width inputs—whether centimeters or millimeters—to prevent calculation errors.
