Spiral Length Calculator

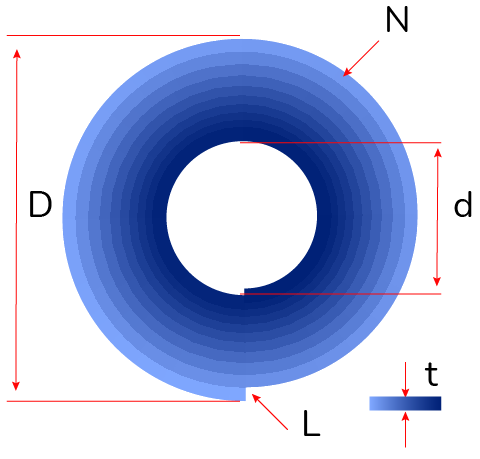

The mathematical approach depends entirely on whether you are analyzing a flat, flat-wound Archimedean spiral or a three-dimensional cylindrical helix. For an Archimedean spiral, the number of turnings is first derived using the formula: turnings_count = (diameter_out - diameter_in) / (2 * thickness). Once the total turnings and diameters are established, the total archimedean spiral length is computed using: spiral_length_archimedean = (pi * turnings_count * (diameter_out + diameter_in)) / 2. In contrast, a helical spiral accounts for vertical rise using Pythagorean geometry: spiral_length_helix = sqrt(height^2 + (pi * diameter)^2), where height represents the total vertical elevation and diameter represents the cylindrical coil width.

Imagine you are manufacturing a flat metal gasket wound in an Archimedean spiral pattern. Your inner diameter is 2 inches, your outer diameter is 10 inches, and the material thickness is 0.5 inches. First, calculate the turnings count: (10 - 2) / (2 * 0.5) = 8 / 1 = 8 turnings. Next, plug this value into the length formula: (pi * 8 * (10 + 2)) / 2. This simplifies to (3.14159 * 8 * 12) / 2 = 301.59 / 2 = 150.79 inches of material required to fabricate the spiral.

Always ensure your measurement units remain consistent—mixing inches and centimeters will produce heavily skewed results. When dealing with rolled materials like sheet metal or cables, remember to account for material stretching or microscopic gaps between layers, which can slightly increase the real-world material length compared to theoretical geometric calculations. For cylindrical springs, accurately measure the mean coil diameter rather than just the inner or outer edge to maintain precision.
