Ratios of Directed Line Segments Calculator

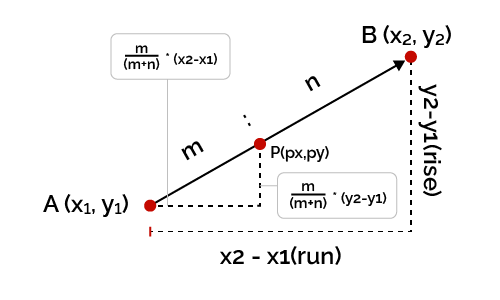

Partitioning a directed line segment from point A(x1, y1) to point B(x2, y2) involves finding coordinates that divide the distance at a given ratio m:n. For internal division, the coordinates of the partition point P(x, y) are computed using the weighted average formula: x = (m*x2 + n*x1)/(m + n) and y = (m*y2 + n*y1)/(m + n). For external division, where the target point lies outside the segment along the same linear path, the subtraction formulas x = (m*x2 - n*x1)/(m - n) and y = (m*y2 - n*y1)/(m - n) are applied. The calculator then simplifies the resulting segment lengths into reduced fractional ratios using greatest common divisor (GCD) logic.

Imagine you have a directed line segment starting at point A(1, 2) and ending at point B(7, 10). You want to find the internal partition point that divides this segment in a 2:1 ratio (where m = 2 and n = 1). First, apply the internal x-coordinate formula: x = (2(7) + 1(1)) / (2 + 1) = (14 + 1) / 3 = 15 / 3 = 5. Next, apply the y-coordinate formula: y = (2(10) + 1(2)) / (2 + 1) = (20 + 2) / 3 = 22 / 3, or approximately 7.33. Thus, the exact partition point P lies at coordinates (5, 7.33), neatly splitting the directed path into the desired proportional segments.

Always pay close attention to the direction of your line segment. Because these are directed segments, reversing your start point (x1, y1) and end point (x2, y2) will invert your ratio outputs. When dealing with external division, ensure your ratio values for m and n are not equal, as a 1:1 external ratio results in a division by zero error since parallel lines never intersect at a finite point.
