Quaternion Calculator

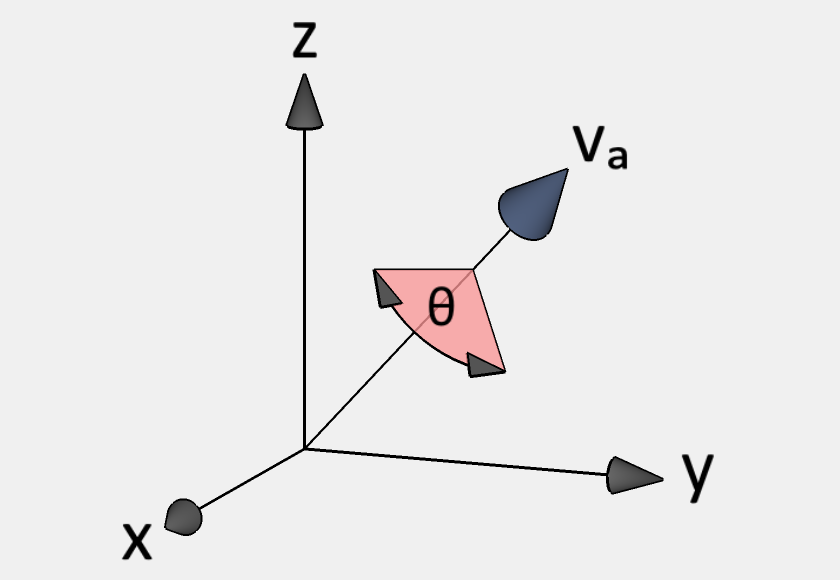

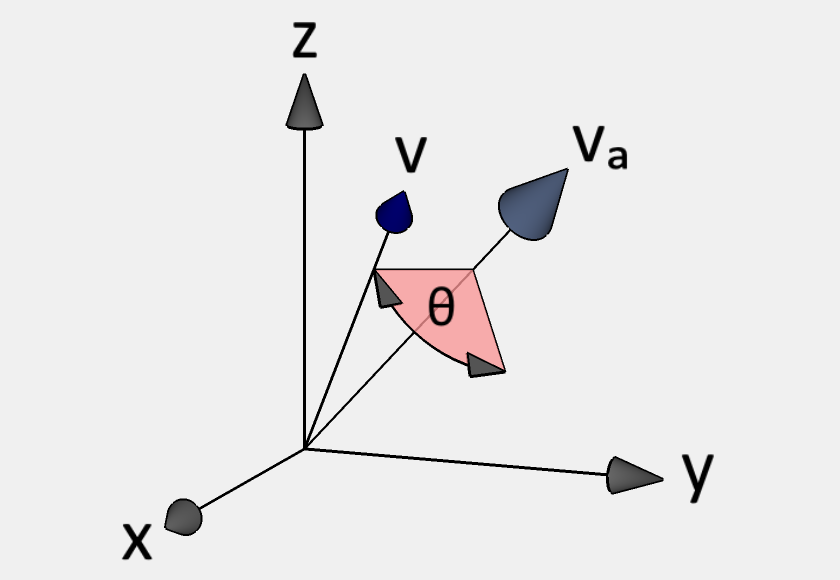

A quaternion is expressed in the form $q = a + bi + cj + dk$, where $a$ is the real scalar part, and $b, c, d$ are the imaginary vector components accompanied by fundamental units $i$, $j$, and $k$. The magnitude (or norm) of a quaternion is computed using the four-dimensional Euclidean distance formula: $|q| = \sqrt{a^2 + b^2 + c^2 + d^2}$. When dealing with rotations, a unit quaternion is often constructed using an axis-angle representation, where the scalar part relates to the cosine of half the rotation angle, and the vector components scale with the sine of half the rotation angle.

Let us find the magnitude of a quaternion $q_1 = 2 + 3i + 6j + 2k$. First, identify the scalar and vector coefficients: $a_1 = 2$, $b_1 = 3$, $c_1 = 6$, and $d_1 = 2$. Next, square each individual component: $2^2 = 4$, $3^2 = 9$, $6^2 = 36$, and $2^2 = 4$. Sum these squared values together to get $4 + 9 + 36 + 4 = 53$. Finally, take the square root of the sum: $\sqrt{53} \approx 7.28$. Thus, the magnitude of the quaternion is approximately 7.28.

Always ensure your quaternions are normalized (i.e., have a magnitude of 1) before applying them for 3D rotations to prevent unintended scaling or distortion. When multiplying quaternions, remember that quaternion multiplication is non-commutative, meaning the order of operands strictly changes the outcome. Double-check your angle inputs, as many rotation algorithms require converting degrees to radians or scaling by a half-angle factor.
