Phase Shift Calculator

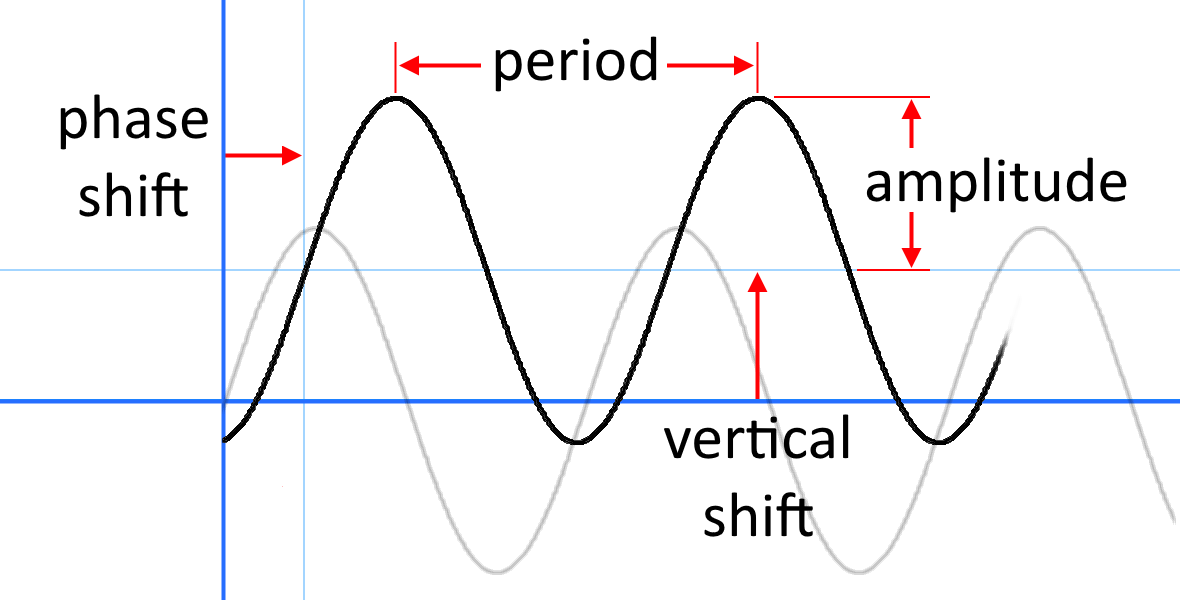

Trigonometric functions are generally expressed in the standard sinusoidal form f(x) = A sin(Bx - C) + D or f(x) = A cos(Bx - C) + D. Each coefficient dictates a specific geometric transformation of the base wave graph. The amplitude is determined by |A|, dictating the peak height of the wave from its center axis. The period of the wave is calculated using the angular frequency parameter via the formula Period = 2π / B. Finally, the horizontal translation, known as the phase shift, is computed by dividing the coefficient C by B, yielding Phase Shift = C / B. If the expression inside the parenthesis is written as Bx + C, the shift is in the negative direction.

Let us analyze the trigonometric function f(x) = 3 sin(2x - π/4) + 1. By comparing this equation to the standard form A sin(Bx - C) + D, we can extract the individual parameters: A = 3, B = 2, C = π/4, and D = 1. First, determine the amplitude, which is simply |3| = 3. Next, calculate the period using the formula Period = 2π / B, resulting in 2π / 2 = π. To find the phase shift, compute C / B, which gives (π/4) / 2 = π/8. Because the sign before C is negative, the graph shifts π/8 units to the right. Lastly, the vertical shift D moves the entire sinusoidal wave upward by 1 unit.

When working by hand or verifying your work with a calculator, always factor out the coefficient B if your equation is written in the form sin(Bx - C) to correctly identify your starting shift. Remember that changing the phase shift does not alter the physical width (period) or height (amplitude) of the wave; it merely repositions it along the horizontal axis. Double-check your angle unit settings—radians versus degrees—before evaluating wave coordinates at specific points.
