Irregular Polygon Area Calculator

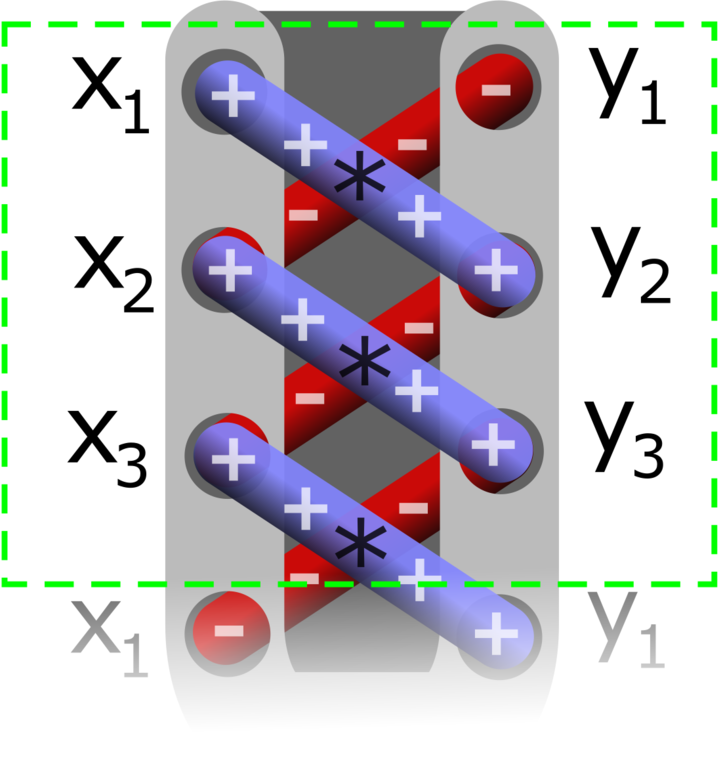

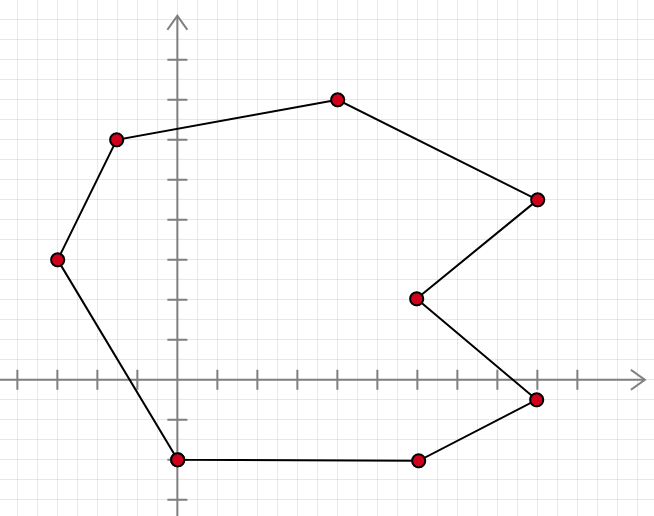

This calculator relies on the Shoelace Formula (also known as Gauss's area formula or the Surveyor's formula), a mathematical algorithm that determines the area of a simple polygon whose vertices are described by Cartesian coordinates in the plane. The formula cross-multiplies corresponding coordinates to find the area enclosed by the polygon boundary. Mathematically, for a polygon with n vertices represented as (x₁, y₁), (x₂, y₂), ..., (xₙ, yₙ), the area A is calculated as:

A = 0.5 * | (x₁y₂ + x₂y₃ + ... + xₙy₁) - (y₁x₂ + y₂x₃ + ... + yₙx₁) |

To ensure absolute accuracy, the vertices must be entered sequentially around the perimeter—either clockwise or counterclockwise—without skipping across the shape.

Let us calculate the area of a four-sided polygon (a parallelogram) defined by the coordinate points: Point 1 (1, 6), Point 2 (5, 6), Point 3 (8, 1), and Point 4 (4, 1).

Step 1: List the coordinates in sequential order, repeating the first point at the end:
(1, 6), (5, 6), (8, 1), (4, 1), and back to (1, 6).

Step 2: Multiply downward diagonals (x_i * y_i+1):
(1 * 6) = 6
(5 * 1) = 5
(8 * 1) = 8
(4 * 6) = 24
Sum of downward products = 6 + 5 + 8 + 24 = 43.

Step 3: Multiply upward diagonals (y_i * x_i+1):
(6 * 5) = 30
(6 * 8) = 48
(1 * 4) = 4
(1 * 1) = 1
Sum of upward products = 30 + 48 + 4 + 1 = 83.

Step 4: Compute the final area:
A = 0.5 * |43 - 83| = 0.5 * |-40| = 20 square units.

Maintain Order: Always enter your vertices sequentially in a continuous loop around the perimeter. Entering points in a crisscross or random pattern will yield an incorrect intersecting bowtie shape rather than a true polygon.

Consistent Units: Ensure all your X and Y coordinate values use the exact same measurement unit (e.g., all meters or all feet) to prevent conversion errors in your final dimensional output.
