Involute Function Calculator

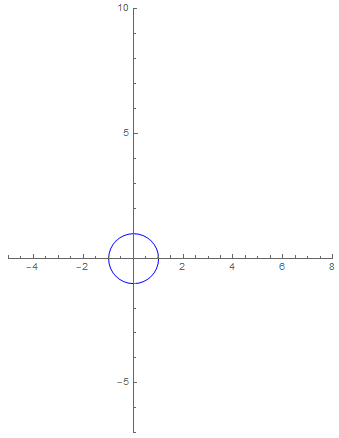

The involute function is fundamentally tied to trigonometry and circle geometry, frequently applied in gear kinematics. Mathematically, the involute of an angle θ (measured in radians) is defined by the formula: inv(θ) = tan(θ) - θ. In this expression, θ represents the pressure angle of a gear tooth. As the pressure angle increases, the tangent value grows much faster than the linear angle itself, resulting in a rapidly rising curve that dictates the curvature of gear flanks.

Let us calculate the involute function for a standard gear pressure angle of 20 degrees. First, convert degrees to radians: θ = 20° × (π / 180) ≈ 0.349066 radians. Next, compute the tangent of this angle: tan(0.349066) ≈ 0.364000. Finally, subtract the radian value from the tangent value: inv(20°) = 0.364000 - 0.349066 = 0.014934. Thus, the involute value for a 20-degree pressure angle is approximately 0.014934.

Always ensure your angle units are set correctly, as mixing degrees and radians is the most common source of calculation errors. When designing mechanical gearboxes, remember that standard pressure angles are typically 14.5, 20, or 25 degrees. Double-check your machining tolerances, as tiny variations in the involute profile can lead to excessive backlash, noise, or premature gear wear.
