Foci of an Ellipse Calculator

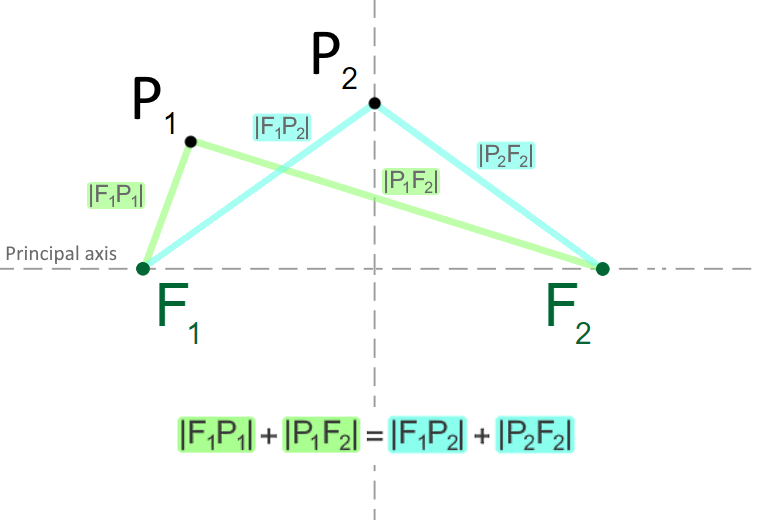

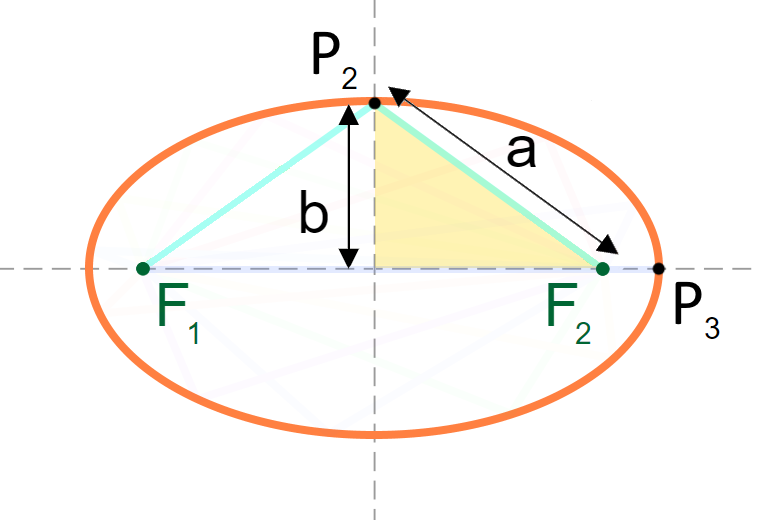

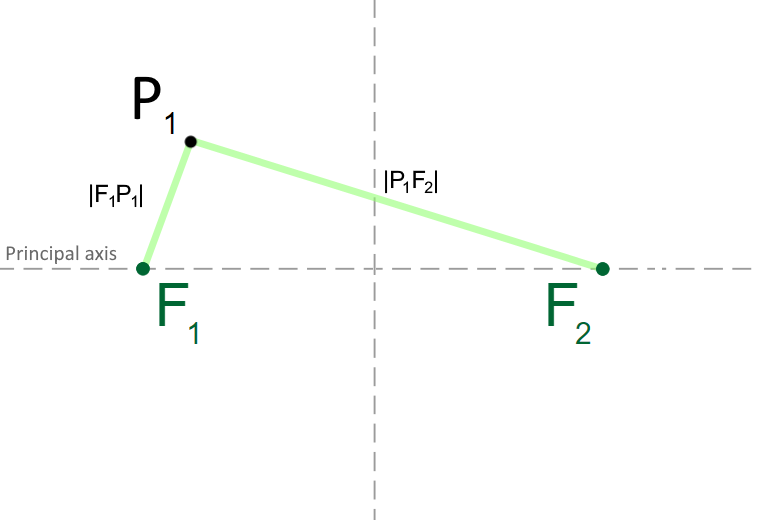

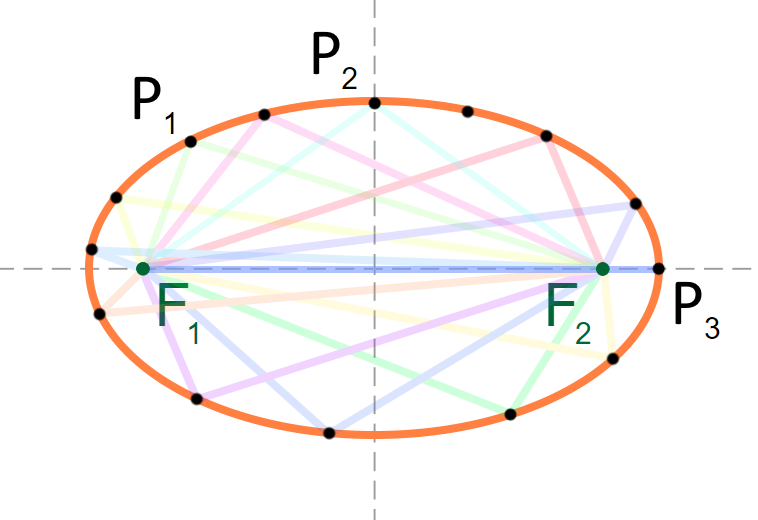

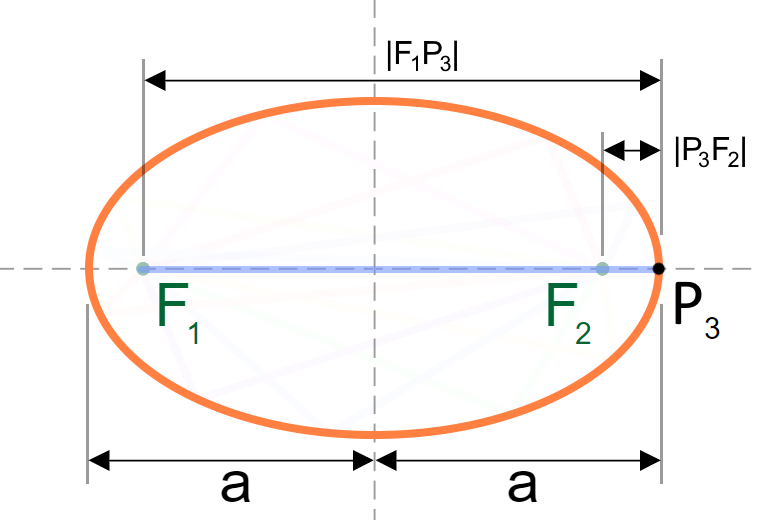

An ellipse is defined by two focal points (foci) such that the sum of the distances from any point on the curve to the two foci is constant. To calculate the foci, we rely on the semi-major axis (a) and the semi-minor axis (b), along with the center coordinates (c1, c2). The distance from the center to each focus is denoted as 'c', derived using the Pythagorean relationship c = sqrt(|a^2 - b^2|). If the ellipse is oriented horizontally (where a > b), the foci lie along the x-axis at (c1 ± c, c2). If it is vertically oriented (where b > a), the foci shift to the y-axis at (c1, c2 ± c). Additionally, the eccentricity (e = c / max(a,b)) measures how stretched the ellipse is, while standard formulas govern its area (pi * a * b) and approximate perimeter.

Let us walk through a practical example. Imagine an ellipse centered at the origin (0,0) with a horizontal semi-major axis a = 5 and a semi-minor axis b = 3. First, we calculate the focal distance 'c': c = sqrt(5^2 - 3^2) = sqrt(25 - 9) = sqrt(16) = 4. Because a is greater than b, the ellipse stretches horizontally, placing the foci along the x-axis. Thus, Focus 1 is at (-4, 0) and Focus 2 is at (4, 0). Next, the eccentricity is calculated as e = 4 / 5 = 0.8. The area evaluates to 5 * 3 * pi = 47.12 square units, and the Ramanujan approximation for the perimeter yields approximately 25.53 units.

When inputting your values, always double-check whether your ellipse is horizontal or vertical, as this dictates the placement axis for your foci. Ensure your semi-major axis (a) and semi-minor axis (b) are positive numbers greater than zero. If you are working with an ellipse shifted away from the origin, correctly input your center coordinates (c1, c2) to ensure the final focus coordinates translate accurately across the Cartesian plane.
