Cycloid Calculator

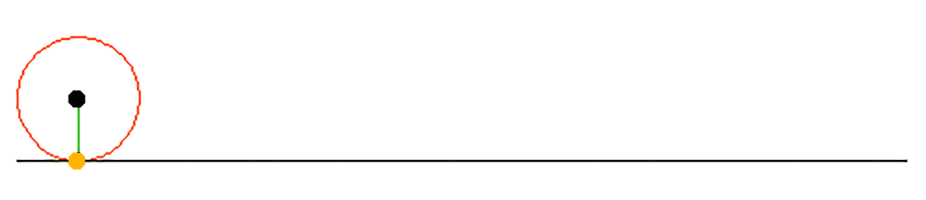

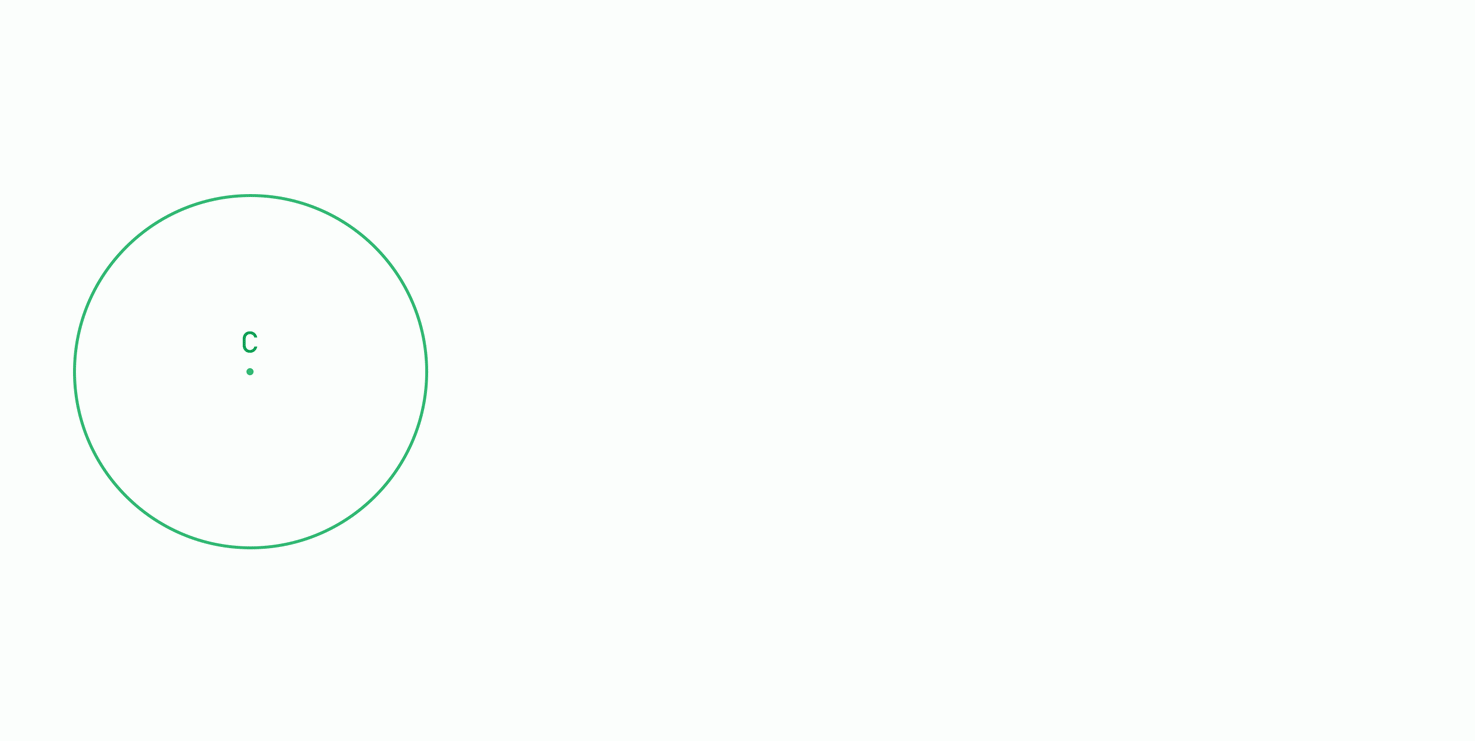

A cycloid is the curve traced by a point on the rim of a circular wheel as the wheel rolls along a straight line without slipping. All fundamental properties of a single arch of a cycloid are governed directly by the radius (r) of the generating circle. The primary formulas utilized by this calculator include:

Diameter (d): d = 2 * r

Arc Length (Hump Length): L = 8 * r

Area Under One Arch: A = 3 * π * r^2

Perimeter (Arc Length + Base): P = (2 * π * r) + (8 * r)

Let us walk through a practical calculation using a circle with a radius (r) of 5 units. By applying our geometric formulas, we can easily derive all properties for a single hump of the cycloid:

1. Find the Diameter: d = 2 * 5 = 10 units.

2. Calculate Hump Length / Arc: L = 8 * 5 = 40 units.

3. Determine the Area Under the Arch: A = 3 * π * (5^2) = 3 * 3.14159 * 25 = 235.62 square units.

4. Compute the Total Perimeter: P = (2 * π * 5) + (8 * 5) = 31.42 + 40 = 71.42 units.

When working with cycloid curves in physics or engineering problems, keep these helpful tips in mind:

• Units Consistency: Always ensure your input values, such as radius or diameter, use the same linear unit (e.g., centimeters or meters) to maintain accurate area and perimeter outputs.

• Single Hump vs. Full Curve: Standard cycloid formulas apply specifically to one complete arch (or hump). If your application involves multiple revolutions, multiply the arc length and area parameters accordingly.
