Circle Theorems Calculator

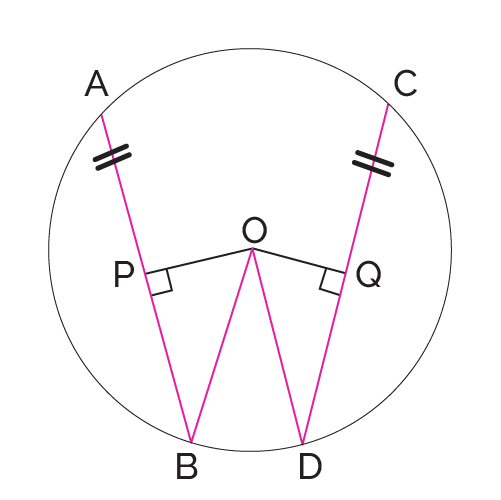

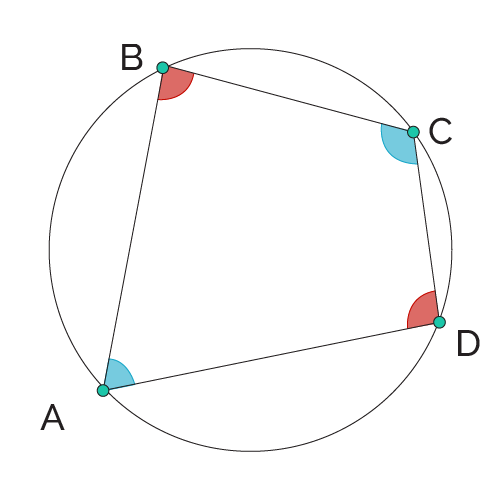

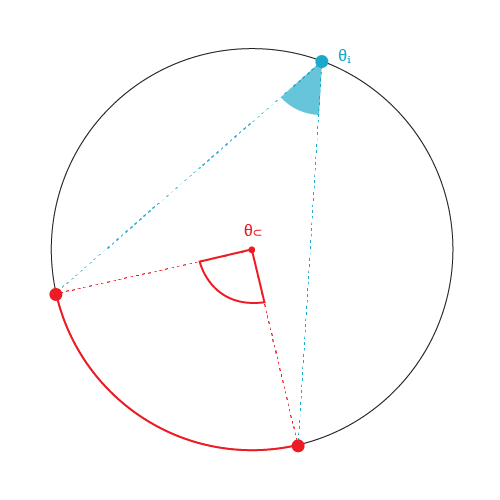

Circle geometry relies on fundamental relational rules between angles, arcs, and line segments within or touching a circle. For instance, the central angle theorem states that a central angle is always twice the measure of any inscribed angle subtended by the same arc: central_angle = 2 * inscribed_angle. Other core formulas calculate arc length via arc_length = central_angle * radius and find chord-center distances using the Pythagorean relationship radius_chord_theorem = sqrt(distance_center^2 + (chord/2)^2). Additionally, properties of cyclic quadrilaterals ensure that opposite angles sum to 180 degrees (or π radians), meaning angle_a = π - angle_c.

Let us solve for a central angle when the corresponding inscribed angle is given. Suppose you are working with an inscribed angle of 35 degrees that subtends a specific arc on a circle with a radius of 10 units. First, apply the central angle theorem: central_angle = 2 * 35° = 70°. Converting 70 degrees to radians gives approximately 1.2217 radians. Next, to find the arc length subtended by this angle, multiply the central angle in radians by the radius: arc_length = 1.2217 * 10 = 12.22 units. This straightforward workflow allows you to rapidly bridge angle measurements with linear dimensions.

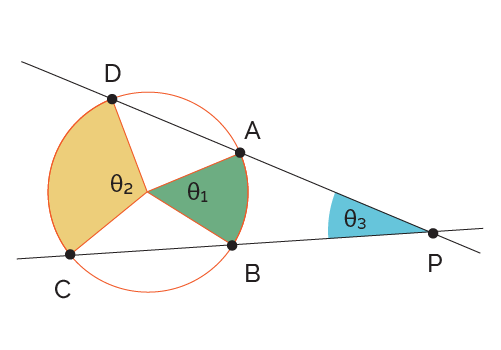

Always verify whether your angles are measured in degrees or radians before plugging them into trigonometric or arc length formulas to avoid severe calculation errors. When dealing with cyclic quadrilaterals, double-check that all four vertices touch the circumference of the circle precisely. Finally, draw a quick hand sketch of your circle layout to visualize chord positions and intersecting secants before running the numbers through the calculator.
