Catenary Curve Calculator

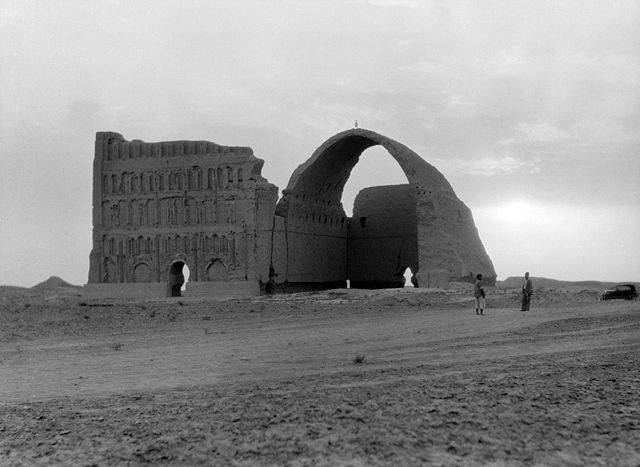

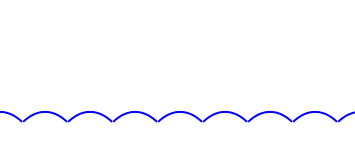

The standard catenary curve is mathematically defined using the hyperbolic cosine function. The foundational equation is expressed as y = a * cosh(x / a), where 'a' represents the parameter that dictates the steepness and scaling of the curve. When dealing with specialized scenarios where tension or density varies, a weighted catenary equation, y = b * cosh(x / a), introduces a secondary coefficient 'b' to account for asymmetrical or non-uniform mass distribution. To generate a complete coordinate table for plotting, the calculator determines total points using the formula num = 1 + (2 * beginning / step), dividing the span symmetrically from the origin based on your defined step intervals.

Let us walk through a practical computation using standard parameters. Suppose we want to model a standard catenary curve where the scaling parameter 'a' is set to 4 meters, and we evaluate the horizontal span 'x' across a range from -8 meters to +8 meters with a step size of 2 meters. First, we compute the total number of points: num = 1 + (2 * 8 / 2) = 9 points. For x = 0 meters, our calculation yields y = 4 * cosh(0 / 4) = 4 * 1 = 4. For x = 4 meters, we evaluate y = 4 * cosh(4 / 4) = 4 * cosh(1) which equals approximately 4 * 1.543 = 6.17 meters. Repeating this symmetrical process generates the complete profile of the sagging cable across your defined workspace.

When setting up your calculation parameters, always ensure that your step size is appropriately scaled to your beginning span value; overly large steps will produce a blocky, inaccurate graphical representation. Pay close attention to whether your scenario requires a standard or weighted catenary model, as using an incorrect density coefficient can drastically skew tension estimates in structural projects. Finally, remember that the lowest point of the curve, known as the vertex, sits at coordinate (0, a), meaning your choice of vertical offset directly dictates the ground clearance of your modeled structure.
