Hammock Hang Calculator

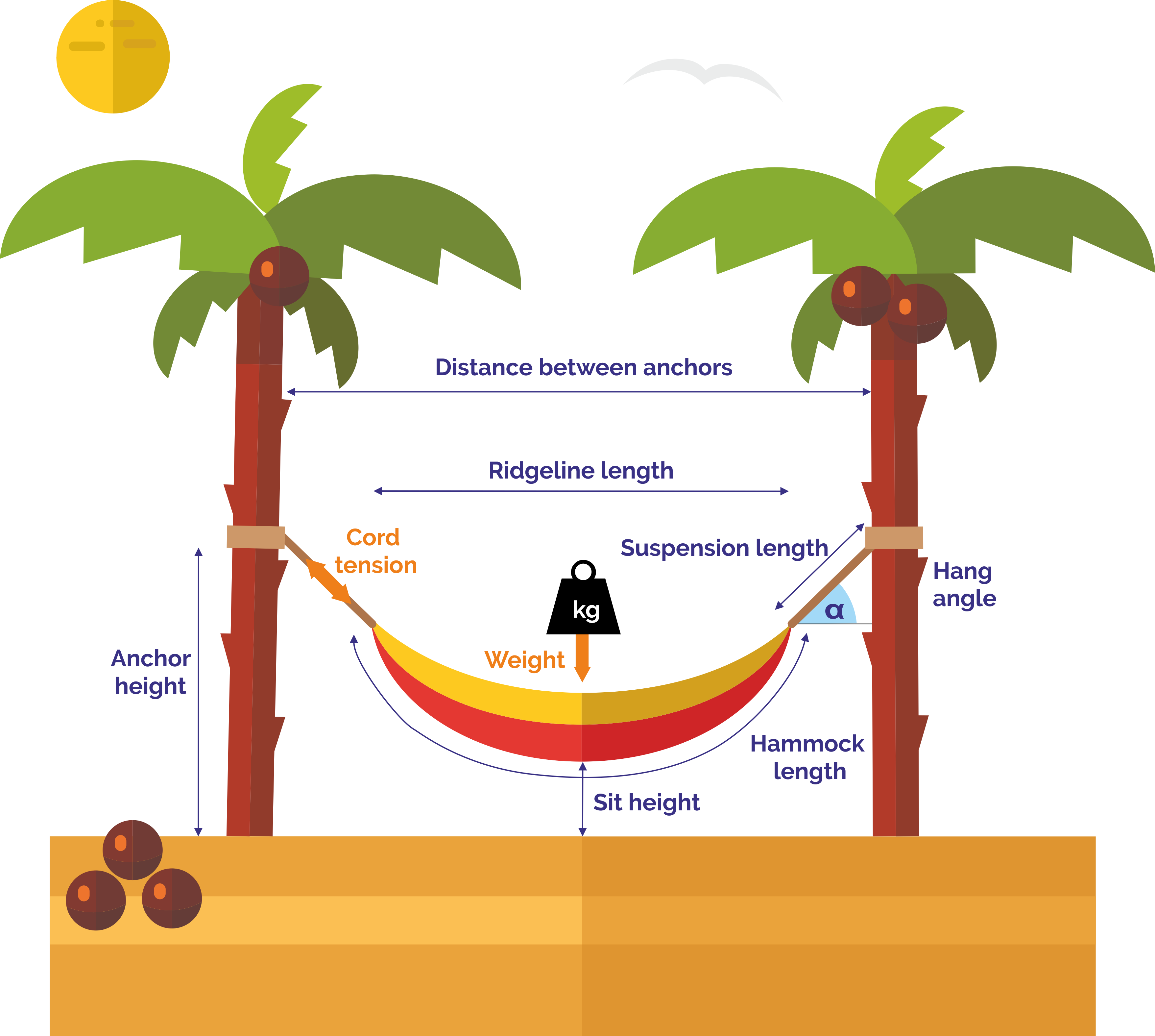

Setting up a hammock involves balancing geometry and physics, specifically load distribution and trigonometric relationships between the suspension angle and tension. The fundamental equation governing vertical tension is driven by half your body weight: tension_vertical = weight / 2. To find the horizontal component, the calculator uses the tangent of your suspension angle: tension_vertical / tension_horizontal = tan(angle * PI / 180). Combining these forces yields the total cord tension via the sine function: cord_tension = tension_vertical / sin(angle * PI / 180). Additionally, anchor height requirements factor in your desired sit height, ridgeline length, and suspension cord geometry to ensure your hammock clears the ground.

Imagine you weigh 160 lbs and plan to use a ridgeline length of 100 inches, hanging your setup at a standard 30-degree angle. First, calculate the vertical tension force: tension_vertical = 160 lbs / 2 = 80 lbs. Next, compute the total cord tension using the 30-degree angle where the sine of 30 degrees is 0.5: cord_tension = 80 / 0.5 = 160 lbs of force on each suspension line. If you convert this to metric force units, cord_tension_force = 160 * 9.80665, resulting in approximately 1,569 Newtons of force acting on your tree straps and carabiners.

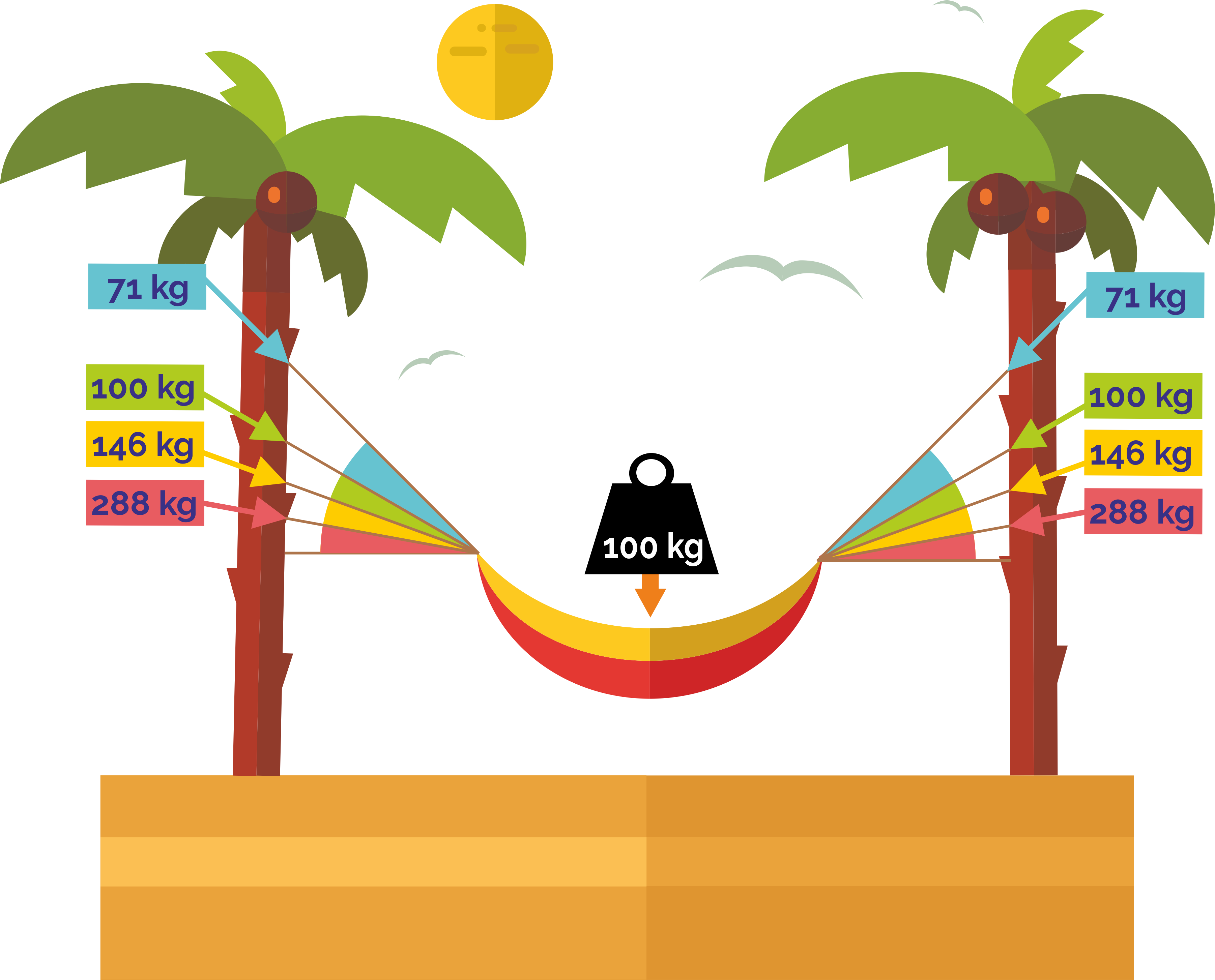

Always aim for a suspension angle around 30 degrees; hanging too flat creates immense, potentially destructive tension on your straps and trees, while hanging too steep causes excessive sag. Ensure your trees or anchor points are healthy and sturdy enough to withstand horizontal and vertical forces calculated by the tool. Always use tree-friendly straps at least one inch wide to protect tree bark from damage during your outdoor adventures.
