Crosswind Calculator

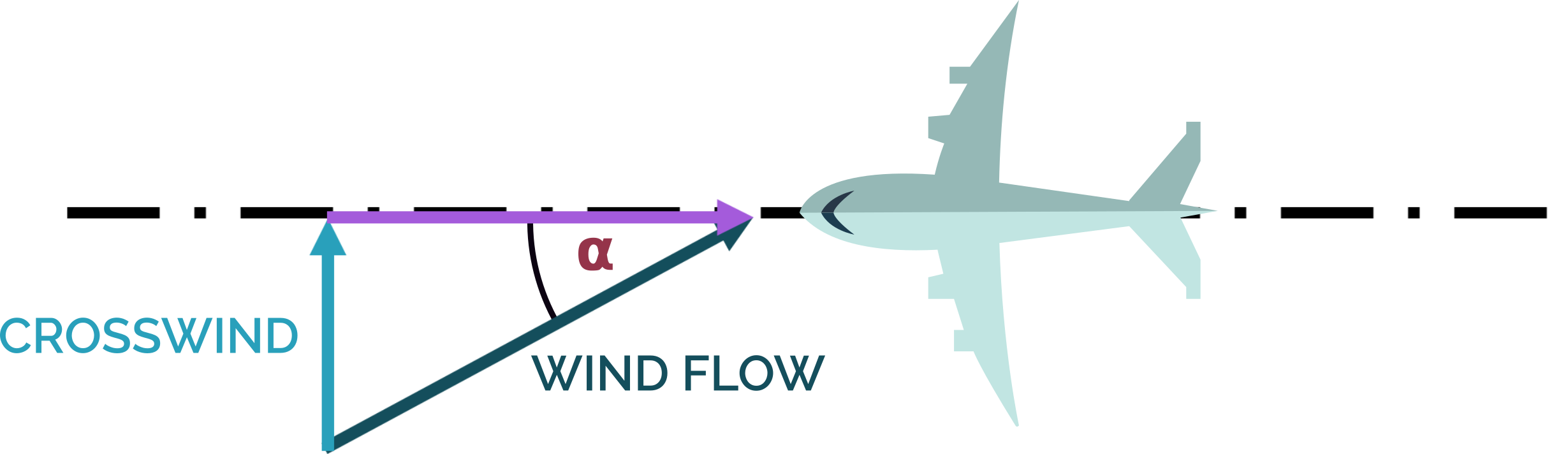

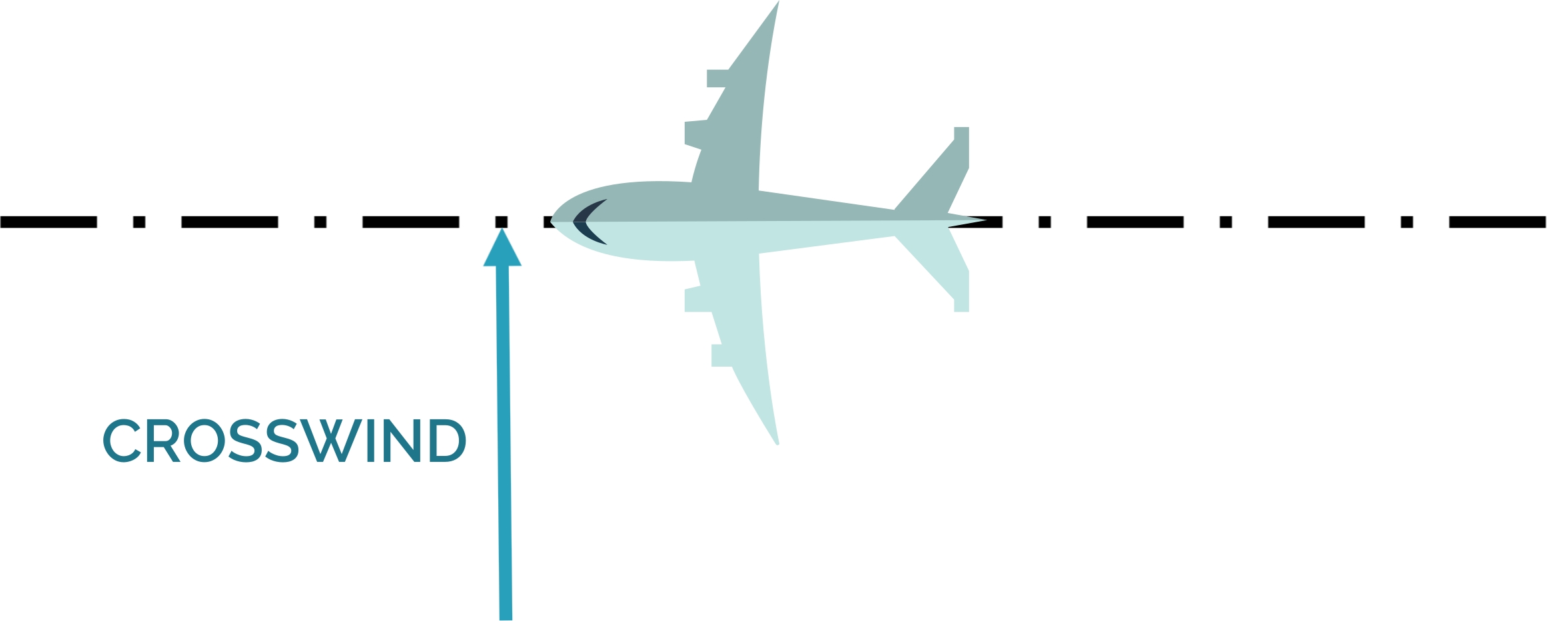

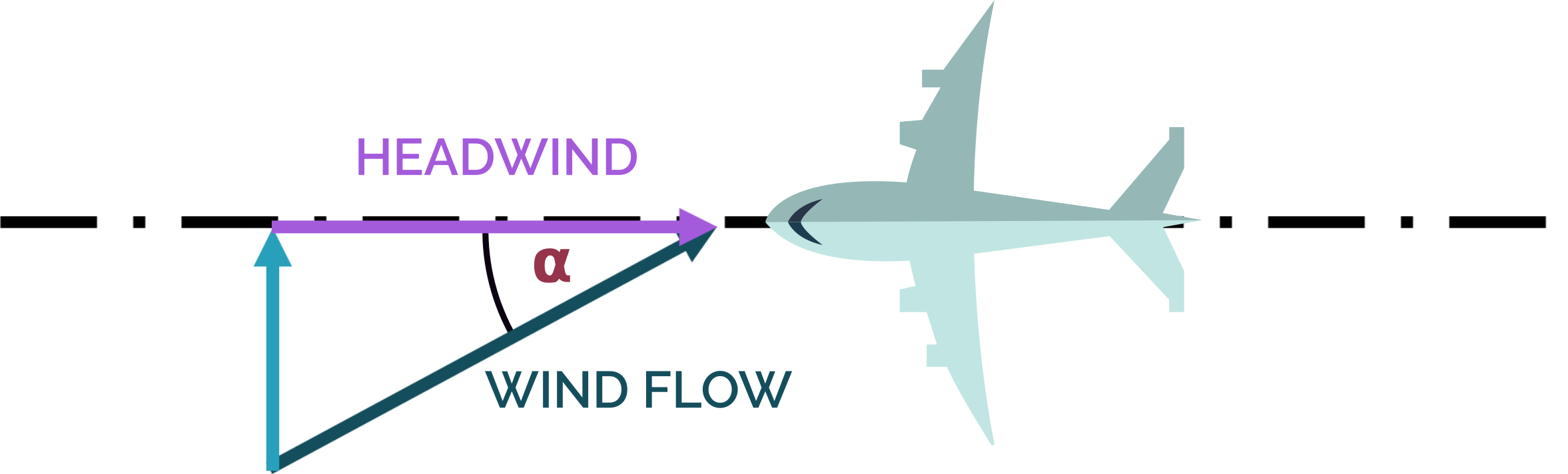

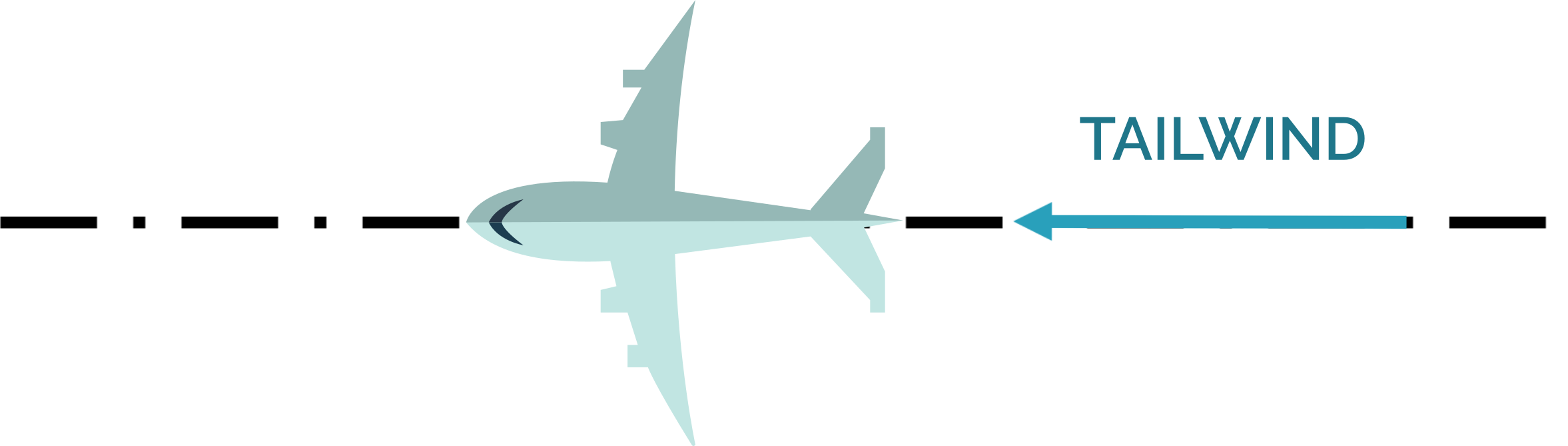

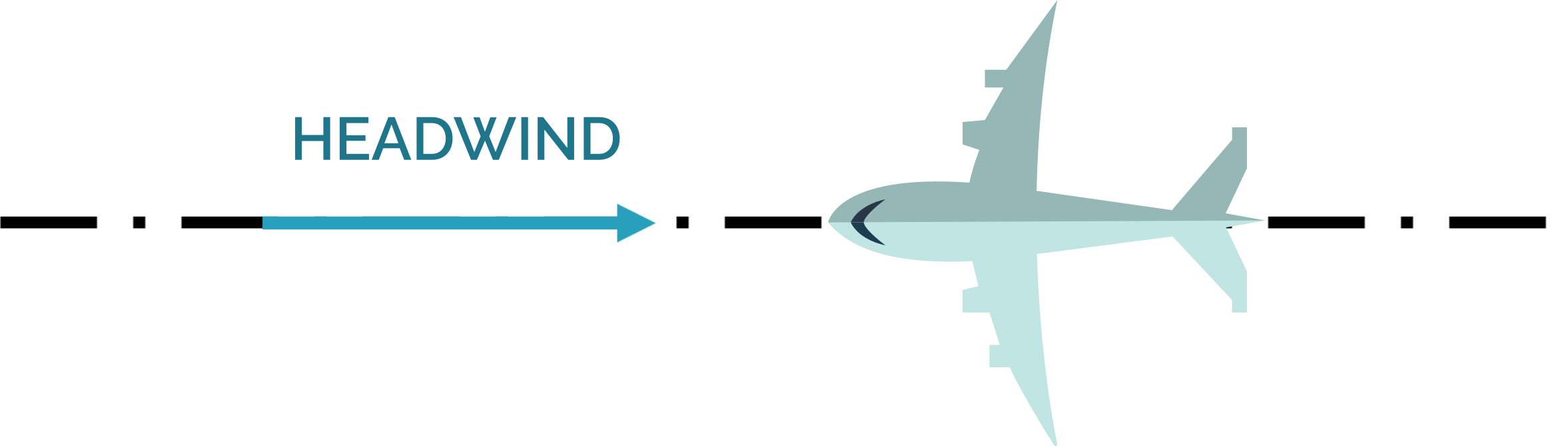

The calculation relies on basic trigonometry to resolve the total wind vector into two independent components: crosswind and headwind (or tailwind). First, the angular difference (alpha) between the runway heading and the wind direction is determined using absolute values and conditional adjustments for angles exceeding 180 degrees. Once alpha is established, the crosswind speed is calculated using the formula: Crosswind Speed = Wind Speed x sin(alpha). Similarly, the headwind component uses the cosine function as Headwind Speed = Wind Speed x cos(alpha). If the resulting cosine value is negative, it indicates a tailwind.

Imagine you are preparing to land on Runway 27 (heading 270 degrees), and the automated weather observation reports winds coming from 230 degrees at 25 knots. First, we find the angular difference (alpha) between the runway and wind direction: |230 - 270| = 40 degrees. Next, we calculate the crosswind component by multiplying the wind speed by the sine of 40 degrees: 25 x sin(40 degrees) = 25 x 0.6428 = 16.07 knots of crosswind. Finally, we calculate the headwind component by multiplying the wind speed by the cosine of 40 degrees: 25 x cos(40 degrees) = 25 x 0.7660 = 19.15 knots of headwind. This means you are dealing with a 16.07-knot crosswind and a 19.15-knot headwind.

Always double-check magnetic versus true headings, as discrepancies between runway magnetic alignment and meteorological wind reports can skew your crosswind calculations. Be mindful of gust factors; always calculate your maximum potential crosswind using peak gust speeds rather than sustained averages to ensure you remain well within your aircraft's demonstrated crosswind limits.
