Welding Calculator

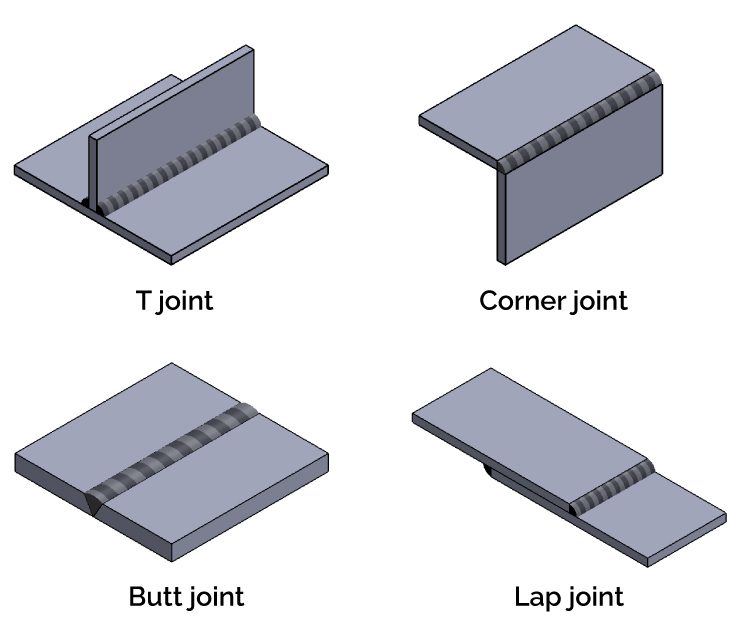

Welding calculations are rooted in mechanics of materials, balancing applied forces against the allowable shear stress (tau) or tensile stress (sigma) of the welded material. For fillet welds, the effective throat is commonly calculated as 0.707 times the leg size. The fundamental equation evaluates the relationship between load capacity (Strength) and geometry. For instance, single transverse fillet welds are calculated using the formula Length = StrengthSTF / (0.707 * Size * SigmaT), where Size represents the weld leg dimension and SigmaT is the allowable tensile stress. For double transverse fillet welds, the factor doubles to 1.414 to account for the dual load-bearing paths. Lap joints and slot welds utilize similar principles, integrating shear and tensile components across parallel and transverse segments to guarantee that the joint will not yield under operational loads.

Let us walk through a practical scenario where we need to determine the required length for a single transverse fillet weld (STF). Suppose our design requires a structural member to withstand a tensile strength (StrengthSTF) of 45,000 Newtons. The allowable tensile stress of the steel (SigmaT) is 120 MPa, and we select a weld leg size of 6 mm. Applying our formula: Length = StrengthSTF / (0.707 * Size * SigmaT). Substituting our numbers: Length = 45000 / (0.707 * 6 * 120). First, compute the denominator: 0.707 * 6 = 4.242; then 4.242 * 120 = 509.04. Finally, divide the load by this product: 45000 / 509.04 = approximately 88.4 mm. Therefore, you will need a minimum weld length of 88.4 mm to safely support the applied load.

Always verify the material grade and its corresponding allowable stress ratings before initiating any calculations, as mild steel and high-strength alloy steels behave very differently under thermal and mechanical loads. Factor in a safety margin beyond the bare minimum calculated length to account for real-world imperfections and uneven load distribution. Finally, ensure that joint surfaces are thoroughly cleaned of rust, oil, and mill scale to prevent porosity and weak spots that could compromise the calculated strength of the weld.
