Wainscoting Calculator

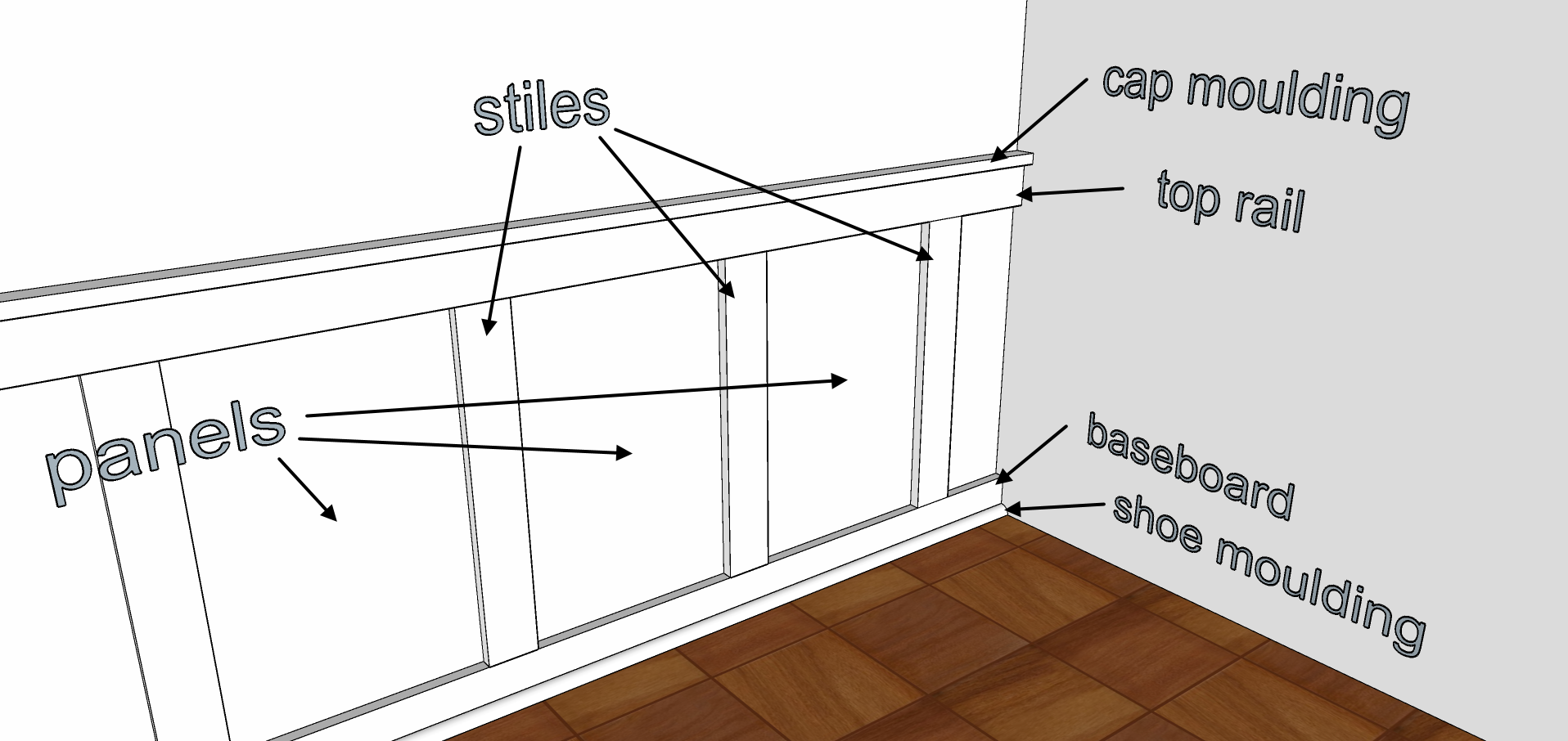

The calculation engine uses architectural dimensions to determine precise vertical and horizontal elements based on your chosen wainscoting style. For shadow box designs, the frame height is calculated by subtracting the base depth, bottom margin, top margin, and cap depth from the overall chair rail height: FrameHeight = ChairRailHeight - BaseDepth - BottomMargin - TopMargin - CapDepth. For recessed panels, the bottom margin is integrated directly into the framing structure, yielding the formula: FrameHeight = ChairRailHeight - BaseDepth - TopMargin - CapDepth. Panel widths are derived by taking the total wall length, subtracting end margins and stile widths, and dividing evenly among your specified number of panels.

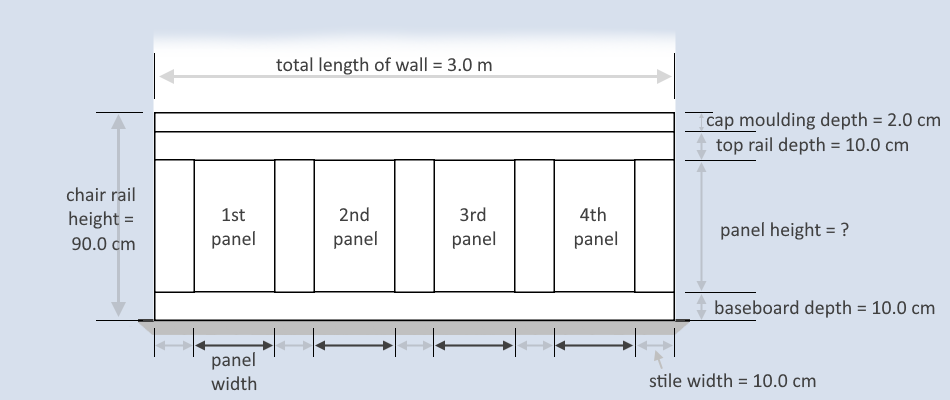

Imagine you want to install shadow box wainscoting along a wall length of 144 inches (12 feet) with a target chair rail height of 36 inches. Let us assume a base depth of 4 inches, a cap depth of 1 inch, top and bottom margins of 2 inches each, a stile width of 2.5 inches, end margins of 3 inches, and a layout containing 4 individual panels. First, we determine the frame height: 36 - 4 - 2 - 2 - 1 = 27 inches. Next, we calculate the panel width using the shadow box formula: (144 - 2.5) / 4 - 2.5 = 33.375 inches wide per panel. With these precise dimensions, you can accurately cut your stiles, rails, and panels with zero material waste.

Always measure your wall lengths at both floor and chair rail heights, as older walls are rarely perfectly plumb or straight. Account for a 5% to 10% material cut waste when purchasing MDF, wood trim, or sheet goods to handle accidental miscuts or splitting. Finally, always dry-fit your frames and test your spacing with painter's tape before applying any permanent construction adhesive or finish nails.
