Vinyl Fence Calculator

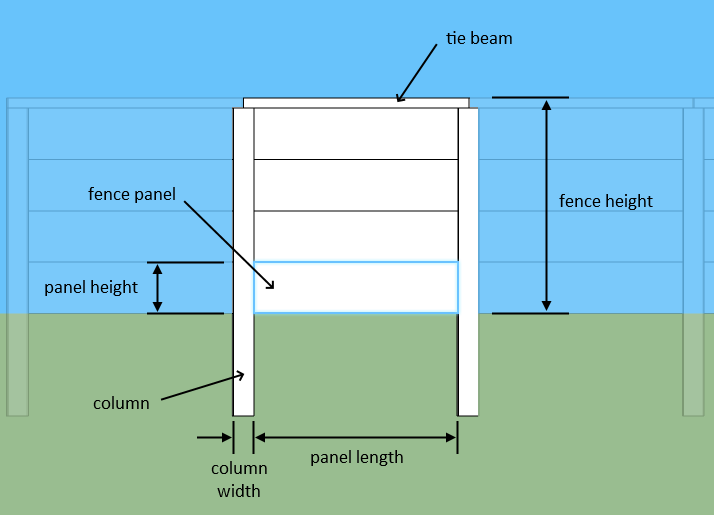

The underlying mathematics of vinyl fencing rely on standard layout geometries where panels and support columns alternate. First, the calculator determines the number of individual spans needed by taking the total fence length minus a single column width, divided by the combined length of one panel and one column: Spans = ceil((FenceLength - ColumnWidth) / (PanelLength + ColumnWidth)). From this, the total column count is derived as Columns = Spans + 1. Vertical layers are calculated by dividing your desired fence height by the individual panel height: Layers = FenceHeight / PanelHeight. Multiplying the spans by the vertical layers yields your total PanelsNeeded = Spans * Layers, while horizontal tie beams match the total span count.

Imagine you want to install a clean, modern privacy boundary in your backyard. You plan for a total fence length of 100 feet and a desired fence height of 6 feet. Standard materials for your chosen style include a column width of 0.5 feet, a panel length of 8 feet, and a panel height of 2 feet. First, calculate the spans: (100 - 0.5) / (8 + 0.5) equals roughly 11.7, which rounds up via the ceiling function to 12 spans. Next, determine columns by adding 1 to spans, giving you 13 columns. For vertical layers, divide the 6-foot fence height by the 2-foot panel height to get 3 layers. Finally, multiply your 12 spans by 3 layers to find you need 36 panels, along with 12 tie beams to lock the structure firmly in place.

Always measure your perimeter twice and account for natural yard slopes, undulating terrain, or corner angles that may require custom cuts. It is generally recommended to purchase an extra 5 to 10 percent in material panels and hardware to cover accidental cuts, splits, or future repairs. Check local zoning laws and homeowner association guidelines regarding maximum allowable fence heights and property line setbacks before placing your material order.
