Thread Pitch Calculator

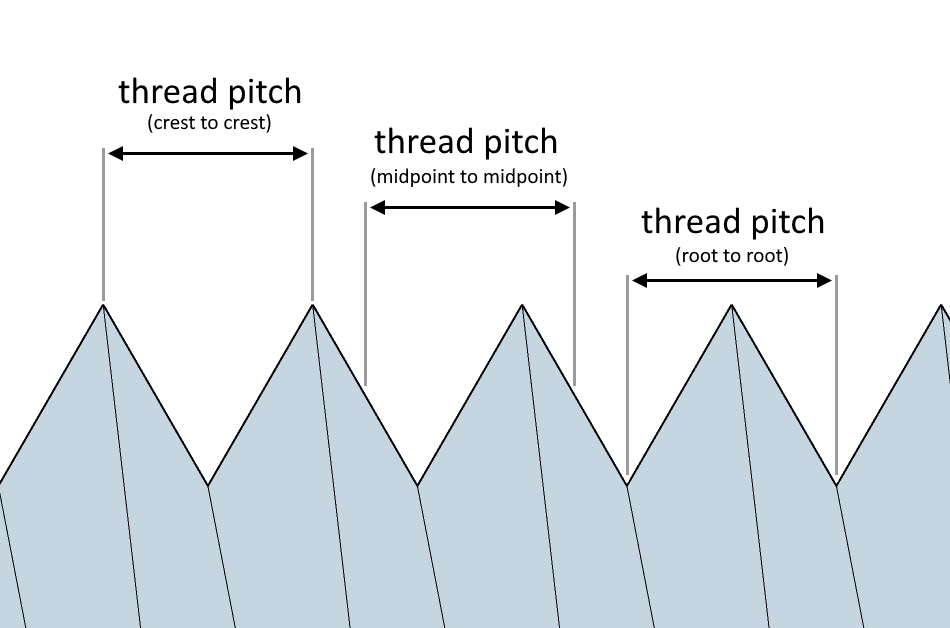

Thread pitch measures the linear distance between adjacent thread peaks, usually expressed in millimeters for metric fasteners or as threads per inch (TPI) for imperial fasteners. The mathematical relationships linking these variables are straightforward and rely on basic proportional logic. To find the pitch (P) when you know the total thread length (L) and the total number of threads (N), divide the length by the count: P = L / N. Conversely, if you need to determine the threads per inch, divide the total number of threads by the length in inches: TPI = N / L. Finally, for metric systems, pitch and TPI share an inverse relationship, where metric pitch equals one divided by the converted imperial frequency.

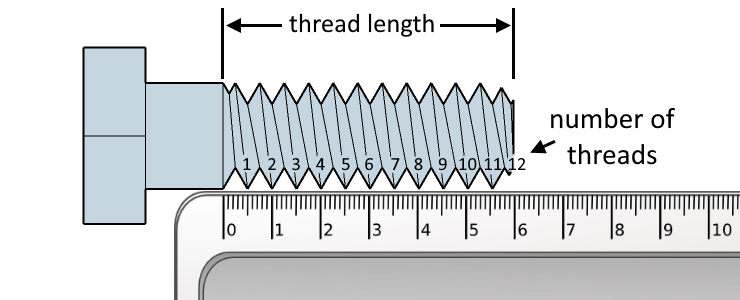

Imagine you are working in your workshop and need to identify a fastener from your inventory. You pick up a bolt with a thread length of 2 inches, and upon counting the distinct ridges, you find a total of 48 threads spanning that length. To find the thread pitch and TPI, you apply our standard formulas. First, calculate the threads per inch: TPI = 48 / 2 = 24 TPI. Next, to find the linear distance between each individual thread ridge, you calculate the pitch: Pitch = 2 / 48 = 0.04167 inches per thread. Armed with this exact profile, you can now safely select the correct matching nut or tap.

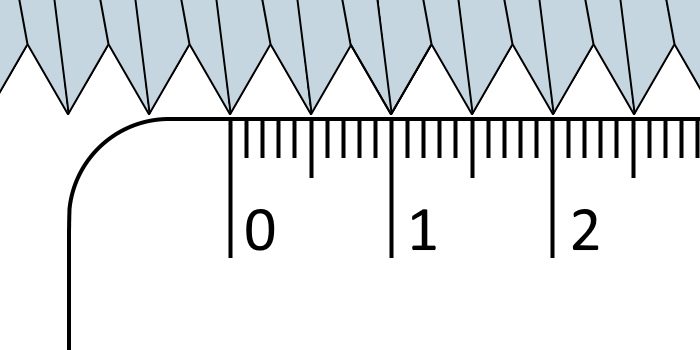

Accurate fastener measurement requires proper technique to avoid costly assembly mistakes. Always use a precision digital caliper or a dedicated thread pitch gauge rather than a standard flexible tape measure, as minor errors in measuring thread length can significantly skew your calculated pitch. When counting total threads on a used or slightly worn bolt, inspect the starting and ending threads carefully to ensure they are not deformed, which could otherwise distort your total count and throw off your final calculations.
