Thread Calculator

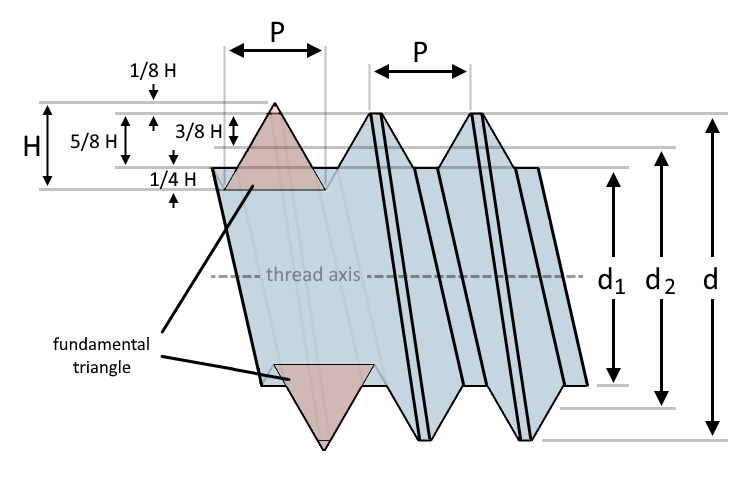

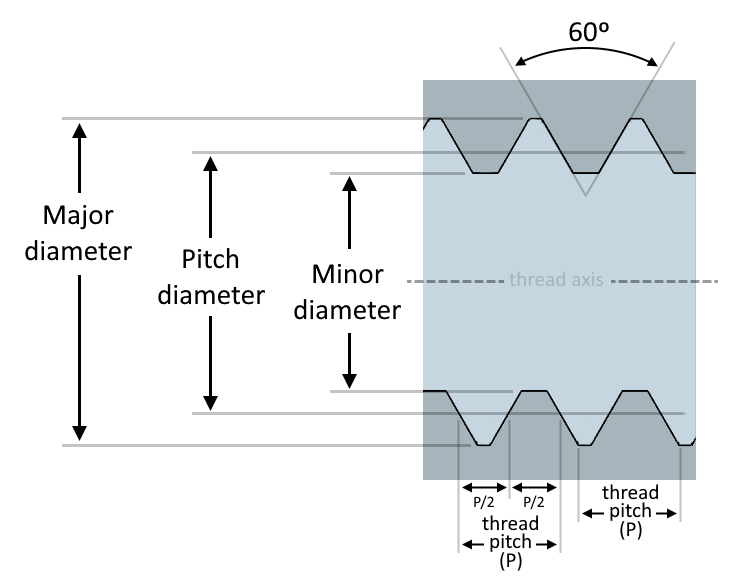

Thread geometry is governed by standardized formulas that relate the nominal diameter, pitch, and fundamental triangle height ($H$). The height of the fundamental triangle is calculated using the pitch: $H = \frac{\text{Pitch} \times \sqrt{3}}{2}$. From there, pitch diameters ($d_2$), major diameters, and minor diameters ($d_1$) are derived through specific trigonometric offsets. For instance, the minor diameter for an external thread is computed as $d_1 = d_2 - \frac{\text{Pitch} \times \sqrt{3} \times 2}{8}$. Furthermore, tolerance grades and fundamental deviations ($es$ for external, $EI$ for internal) are factored in to establish exact maximum and minimum limits for manufacturing compliance.

Let us walk through calculating the dimensions for a standard metric fastener specification. Suppose we are evaluating a thread with a Pitch of 1.0 mm, a nominal major diameter of 6.0 mm, and standard tolerance grades. First, we determine the fundamental triangle height: $H = \frac{1.0 \times \sqrt{3}}{2} \approx 0.86603\text{ mm}$. Next, we calculate the pitch diameter ($d_2$) using the standard relationship: $d_2 = 6.0 - \frac{1.0 \times \sqrt{3} \times 3}{8} \approx 5.3505\text{ mm}$. Finally, we compute the minor diameter ($d_1$) by subtracting the designated thread profile depths: $d_1 = 5.3505 - \frac{1.0 \times \sqrt{3} \times 2}{8} \approx 4.9175\text{ mm}$. By applying tolerance modifiers (such as $es$ and $EI$), the calculator establishes precise upper and lower manufacturing bounds.

When working with threaded components, always verify your input units before running calculations, as mixing millimeters and inches will invalidate your pitch and tolerance grades. Pay close attention to internal versus external thread options (EI vs es), because clearance allowances differ significantly between male and female fasteners. Finally, always cross-reference your calculated limits with ISO or ASME standards if the parts are intended for high-stress structural or industrial applications.
