Spiral Staircase Calculator

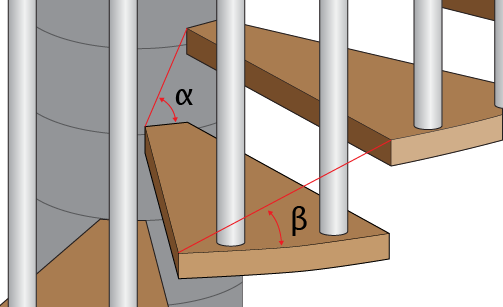

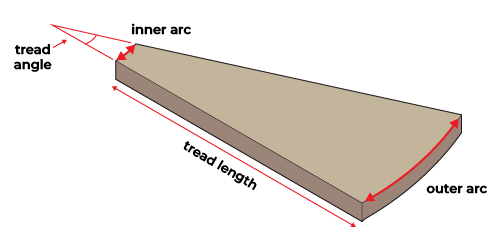

Designing a spiral staircase relies on fundamental geometric and trigonometric formulas. First, the number of steps is determined by dividing the total vertical rise by your maximum allowable riser height and rounding up: numberOfSteps = ceil(totalRise / maxRiserRise). The actual riser height is then evenly distributed: actualRiserRise = totalRise / numberOfSteps. The tread angle depends on the total angle of rotation divided by the number of treads: treadAngle = angleOfRotation / numberOfTreads. Using these values, arc lengths for the inner and outer stringers, as well as the overall handrail length, are computed using Pythagorean theorem applications in cylindrical coordinates.

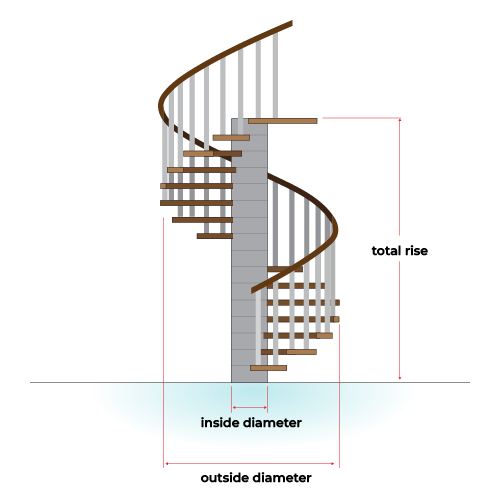

Imagine you need to design a spiral staircase for a loft conversion with a total vertical rise of 108 inches (9 feet) and a 360-degree angle of rotation (2*pi radians). Assume your maximum allowed riser height is 8.5 inches, with an outside diameter of 60 inches and an inside center-column diameter of 6 inches, giving a tread length of 27 inches. First, calculate the number of steps: ceil(108 / 8.5) = 14 steps, meaning 13 treads. The actual riser height is 108 / 14 = 7.71 inches per step. Next, calculate the tread angle: 360 degrees / 13 treads = 27.69 degrees per tread. Finally, using the outer arc and riser height per step, the total handrail length is computed via the hypotenuse formula across all 13 tread intervals, resulting in roughly 204 inches of continuous handrail material required.

Always verify local building codes regarding minimum headroom clearance—typically 6 feet 6 inches to 7 feet—to prevent head injuries during ascent or descent. Ensure the narrowest part of your tread near the center pole provides enough foot width for safe stepping. Finally, always purchase handrail material slightly longer than your calculated value to account for on-site trimming and bending tolerances.
