Spindle Spacing Calculator

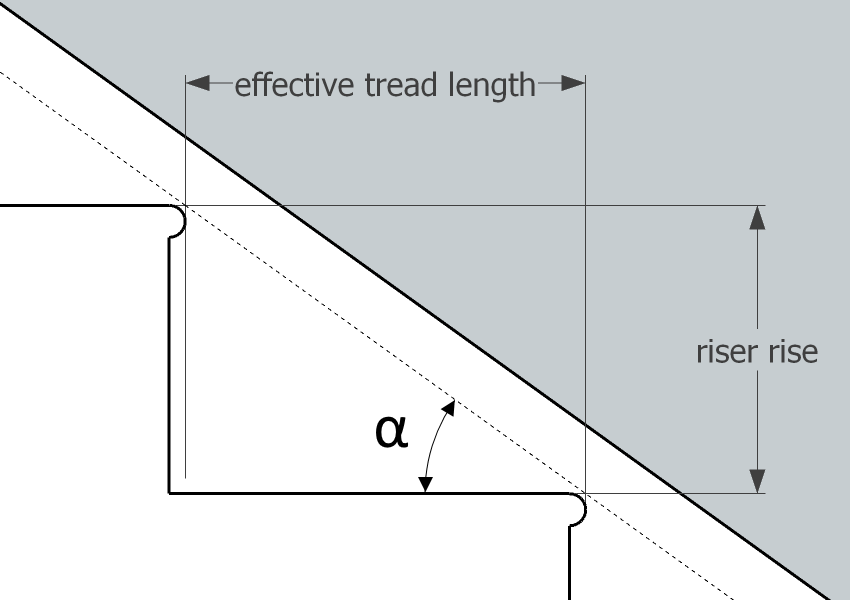

The calculator uses standard geometric and algebraic formulas to distribute spindles evenly across a given railing length while respecting maximum allowable spacing limits (typically 4 inches for safety codes). For level railings, the total span and spindle width are divided by the maximum spacing threshold using ceiling functions to find the total number of spindles ($N$). End spaces are then calculated symmetrically by dividing the leftover gap distance evenly on both sides. For stair railings, the pitch angle ($ heta = ext{atan}( ext{rise} / ext{run})$) is factored into the equations, dividing horizontal spans by $\cos(\theta)$ to yield true diagonal spacing and slanted end measurements.

Imagine you are building a level deck railing with a total length of 72 inches. You plan to use standard 1.5-inch wide spindles, and local building codes dictate a maximum allowable spacing of 4 inches between balusters. First, the calculator adds the railing length and one spindle width ($72 + 1.5 = 73.5$). Next, it divides this by the maximum allowed pitch plus spindle width ($4 + 1.5 = 5.5$), resulting in $13.36$. Taking the ceiling of this number gives $14$ intervals, meaning you need $13$ spindles. The exact clear spacing between each spindle will be adjusted to approximately $3.9$ inches, leaving perfectly balanced end spaces on both terminals of your railing run.

Always verify your local municipal building codes before starting construction, as many jurisdictions strictly enforce a 4-inch maximum sphere rule for baluster gaps to prevent child safety hazards. Measure your total railing length multiple times between finished posts rather than rough framing to account for trim or post sleeves. Finally, choose whether you want centered or even distribution early in your project planning to streamline your layout marking process.
