Rolling Offset Calculator

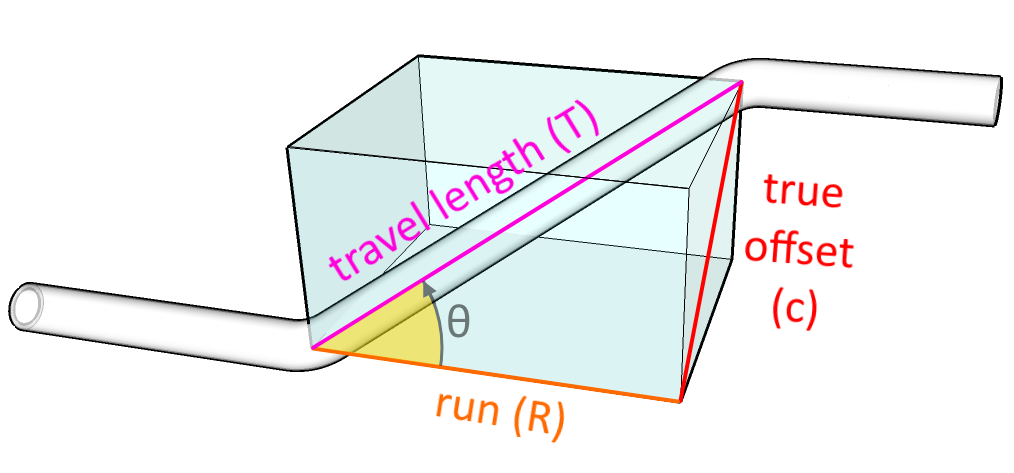

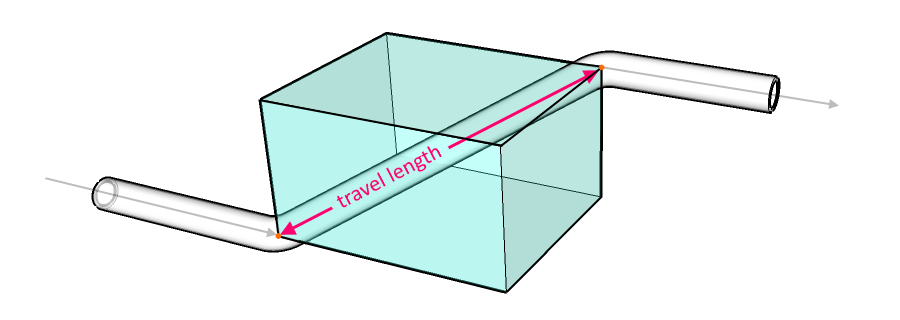

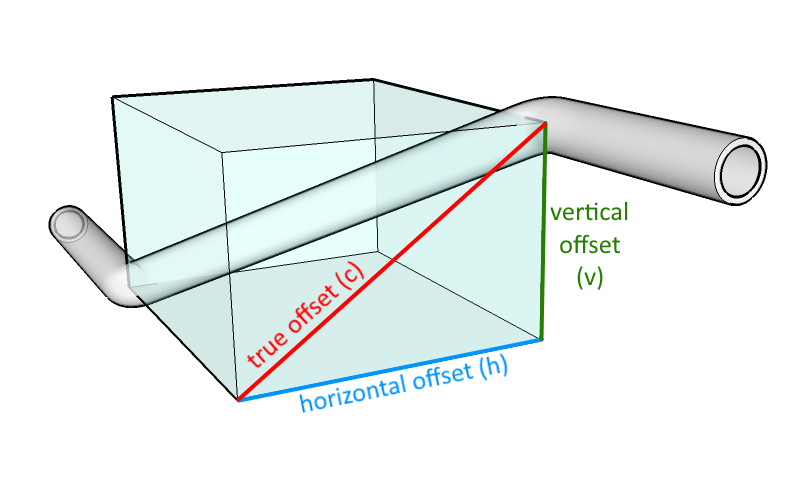

A rolling offset combines a vertical offset and a horizontal offset into a single diagonal trajectory in three-dimensional space. To find the exact measurements, the calculator applies standard trigonometric principles using three primary formulas. First, the true spatial offset is calculated using the Pythagorean theorem in two dimensions: trueOffset = sqrt(horizontalOffset^2 + verticalOffset^2). Next, the run distance is determined using the tangent of the bend angle: tan(angle * pi/180) = trueOffset / run. Finally, the total length of the pipe required between fittings, known as the travel, is computed as: travel = sqrt(trueOffset^2 + run^2).

Imagine you are installing a PVC drainage line that must shift 12 inches to the right (horizontal offset) and 9 inches upward (vertical offset) while moving forward across a room. First, calculate the true offset by squaring both dimensions: 12 squared is 144, and 9 squared is 81. Adding them gives 225, and taking the square root yields a true offset of 15 inches. Next, using a standard 45-degree fitting angle, we divide the true offset by the tangent of 45 degrees (which is 1), giving a run of 15 inches. Finally, to find the travel length of the pipe piece itself, we take the square root of the sum of the squared true offset (225) and squared run (225), resulting in a travel length of approximately 21.21 inches.

Always account for fitting take-outs and center-to-center dimensions when cutting your pipes, as the calculated travel length usually represents the distance from fitting center to fitting center rather than end-to-end pipe length. Double-check your measurements for both horizontal and vertical planes using a level and tape measure before making any cuts to prevent costly material waste. When working with specialized plastics or metals, ensure your angle selections match the standard fittings available on your job site.
