Punch Force Calculator

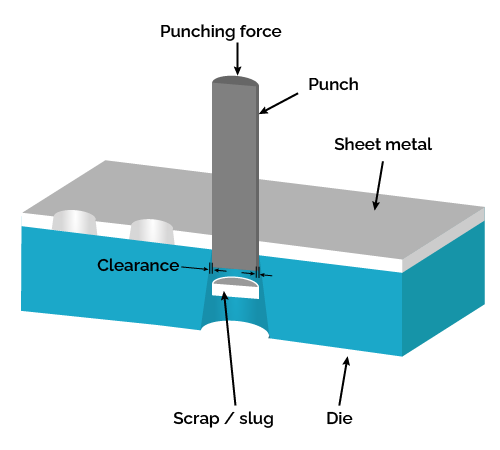

The mathematical principle behind punching force relies on the cross-sectional area being sheared. The fundamental formula used to determine the total cutting force is: Tonnage = Perimeter × Thickness × Shear Strength. In this equation, the perimeter represents the total linear distance of the cut line (such as the circumference of a circle), the thickness is the gauge of the sheet metal, and the shear strength is the maximum stress the material can withstand before fracturing. The resulting force is typically measured in kilonewtons (kN) or tons.

Imagine you need to punch a circular hole with a diameter of 50 mm through a carbon steel plate that has a thickness of 6 mm. The shear strength of this specific carbon steel is 350 MPa (or 350 N/mm²). First, calculate the perimeter of the hole using the formula P = π × diameter, which gives P = 3.1416 × 50 mm = 157.08 mm. Next, apply the punch force equation: Tonnage = 157.08 mm × 6 mm × 350 N/mm². This equals 329,886 N, or approximately 33 kN (roughly 37 short tons of force required to execute the clean punch).

When planning metal fabrication processes, always factor in a safety margin of 15% to 20% above your calculated punch force to account for press friction, dull tooling, and material inconsistencies. Ensure proper clearance between the punch and the die; incorrect clearance can drastically increase required tonnage and cause premature tool wear or ragged burrs on the workpiece. Furthermore, consult your material supplier's specific shear strength data sheets rather than relying solely on generic averages, as alloy variations significantly impact final force requirements.
