Pitch Diameter Calculator

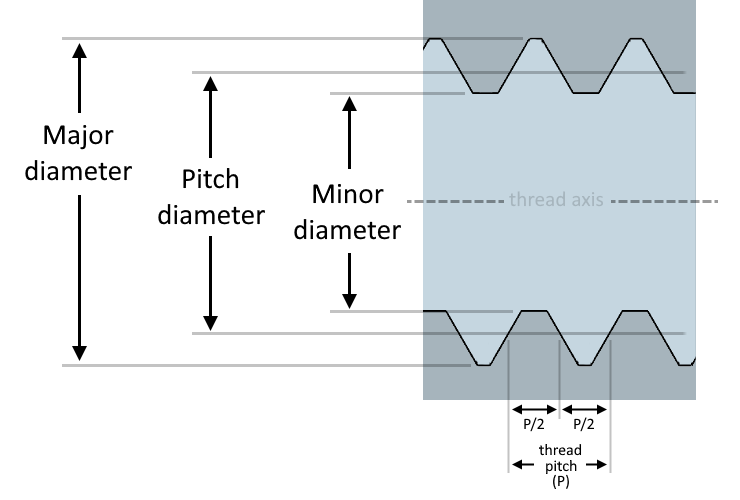

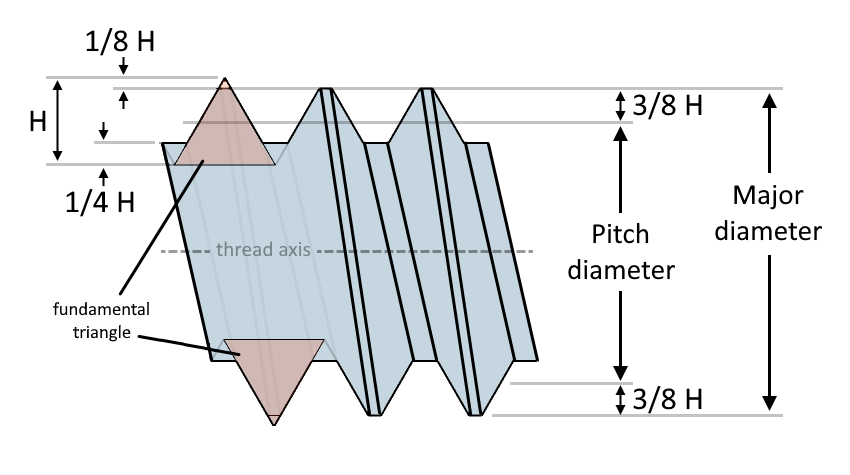

The calculation of pitch diameter begins by determining the fundamental thread height (H) based on the thread pitch using the geometric relation: height = thread_pitch * sqrt(3) / 2 for standard 60-degree V-threads. The basic pitch diameter is derived by subtracting three-quarters of the thread height from the basic major diameter. Furthermore, tolerance grades, upper deviations, and lower deviations are calculated using empirical formulas that factor in the thread pitch and major diameter, allowing the tool to compute the strict maximum and minimum pitch diameter limits.

Consider an external screw thread with a basic major diameter of 20 mm, a thread pitch of 2.5 mm, and a tolerance grade of 6. First, compute the thread height: height = 2.5 * 0.866 = 2.165 mm. Next, calculate the basic pitch diameter by subtracting 1.5 times the height from the major diameter: basic_pitch_diameter = 20 - (2.165 * 1.5) = 16.7525 mm. Applying the specific tolerance grade equations yields the pitch diameter tolerance and subsequent maximum and minimum limits required for precision machining.

Always verify your input values for major diameter and thread pitch using calibrated micrometers or optical comparators before running calculations. Ensure that you correctly distinguish between internal and external thread parameters, as their tolerance positions and deviation formulas differ significantly. Finally, account for temperature variations when dealing with tight-tolerance metal components in a workshop environment.
