Miter Angle Calculator

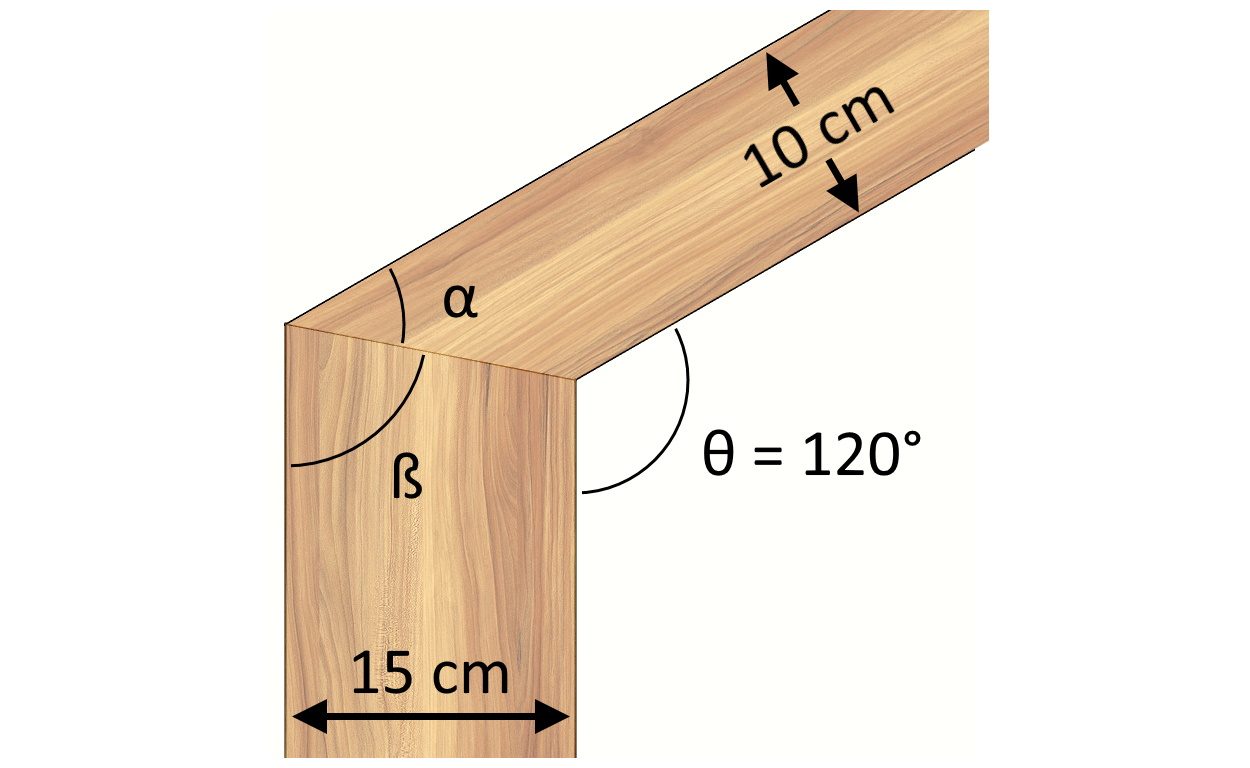

When two pieces of material join at a specific corner angle (known as the joint angle), the cut must bisect that angle if the boards are equal in width. However, when joining boards of varying widths, trigonometric formulas account for the dimensional offset. The calculator applies functions such as the arctangent (atan) and sine (sin) ratios relative to the material widths (aWidth and bWidth) and the target joint angle. This mathematically resolves the individual cutting angles for both piece A and piece B, ensuring their inner and outer edges align seamlessly without unsightly gaps.

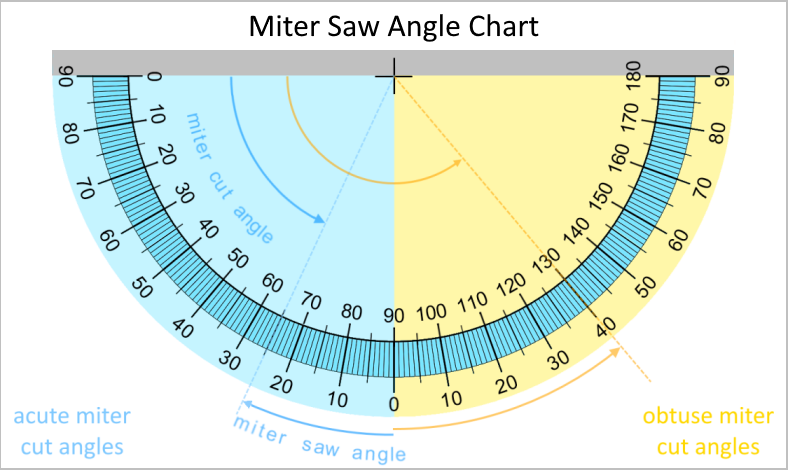

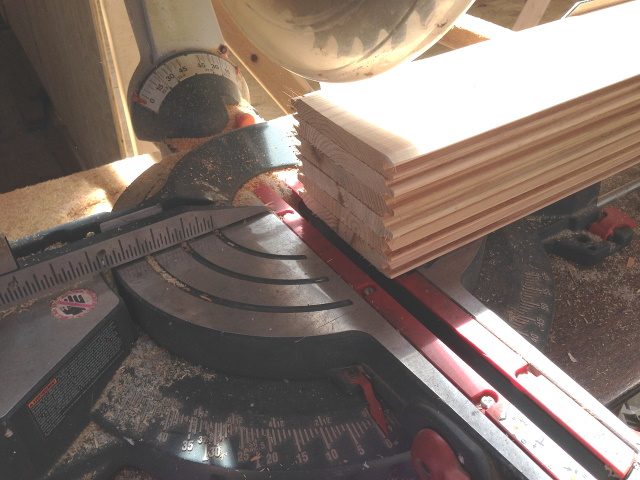

Imagine you are building a custom storage frame where two boards meet at a non-standard joint angle of 80 degrees. Board A has a width of 4 inches, while Board B has a width of 6 inches. Because Board B is wider, the cut cannot simply be a standard 40-degree split. By inputting the joint angle (80 degrees) and respective widths into the formulas, the calculator determines that the miter angle for Board A is adjusted using the arctangent function based on its width relative to the joint geometry. The output provides the precise degrees to set your miter saw blade, ensuring a flush, professional fit on both the front face and back seam of the corner.

Always measure your material twice and test-cut scrap pieces of the same thickness before cutting expensive finish lumber. Account for blade kerf (the width of the saw blade's cut) when measuring long boards to avoid coming up short. When dealing with asymmetrical widths, carefully label your boards (A and B) to match the calculator inputs so you do not accidentally mirror the cut onto the wrong side of the material.
