Grout Calculator

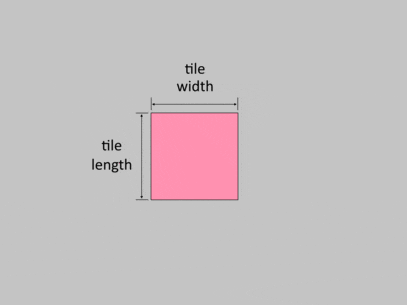

To determine the correct quantity of grout, our calculator uses a precise mathematical model based on spatial geometry and material density. First, it calculates the total surface area and the combined footprint of a single tile plus its surrounding grout joint. Using the ratio of tile coverage to total surface area, it isolates the volume of the empty joint voids (groutVolume = area * (1 - tileArea / ((tileLength + gapWidth) * (tileWidth + gapWidth))) * gapDepth). Next, this volume is converted into weight using the specific density of the grout mix. Finally, it accounts for dry material percentage and divides the total required weight by your specific bag size, rounding up to the nearest whole bag (bags = ceil(dryMaterialWeight / weightPerBag)).

Imagine you are tiling a kitchen backsplash with an area of 50 square feet. You are using 12x12 cm tiles, a standard gap width of 0.5 cm, and a gap depth of 0.6 cm. First, the tile area is 144 cm². Adding the joint width gives a combined unit area of 150.06 cm². The ratio reveals that grout occupies a specific percentage of the total plane. Multiplying this by the 50 sq ft area and gap depth yields a grout volume of approximately 0.055 cubic feet. Factoring in a standard grout density and a 10 lb bag size, the calculation determines that you will need exactly 2 bags of grout to complete your backsplash securely.

Always buy 10% to 15% more grout than the calculated minimum to account for spills, waste, uneven subfloors, and varying joint depths. Ensure your tile joints are completely cleaned of excess thinset mortar before you begin grouting to maintain uniform depth and color integrity throughout your installation.
