Gambrel Roof Calculator

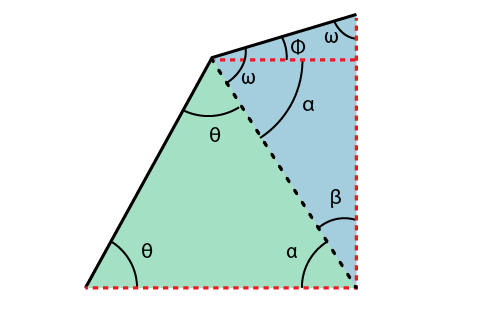

A gambrel roof features two distinct slopes on each side of the ridge: a steeper lower pitch and a shallower upper pitch. The calculation engine processes user-defined building widths, wall lengths, and roof options using standard trigonometric principles. For the classic geometric method (often mapped via circular arcs), the lower and upper angles are derived from fundamental right-triangle identities where the tangent of the angle equals the rise divided by the run (tan(θ) = rise / run). Total roof area combines the surface measurements of both the upper and lower segments across both sides of the structure, factoring in gable and eave overhangs.

Imagine you are framing a detached storage building with a total structural width of 24 feet and a building length of 40 feet. You choose a design where the lower roof segment has a steep pitch (such as a 60-degree lower angle) and the upper segment has a shallower slope. Using the calculator inputs: width = 24 ft, length = 40 ft, lower angle = 60 degrees (π/3 radians), and upper angle = 30 degrees (π/6 radians). The run length for the lower section is calculated, and trigonometric functions determine the lower rafter length to be roughly 13.86 feet. Accounting for the upper slope and a 1-foot eave overhang, the calculator aggregates the individual segment areas to yield a total roof surface area of approximately 1,450 square feet, while simultaneously projecting an expanded usable attic volume based on the intersecting rise heights.

Always double-check local building codes for snow and wind load requirements, as gambrel roofs present large surface areas that must withstand environmental pressures. When measuring overhangs, remember to adjust your rafter length calculations for the plumb cut and bird's mouth joint. Finally, verify that your lower pitch is steep enough to shed heavy rainfall efficiently while keeping the upper pitch safe and accessible for roofing installation.
