French Drain Calculator

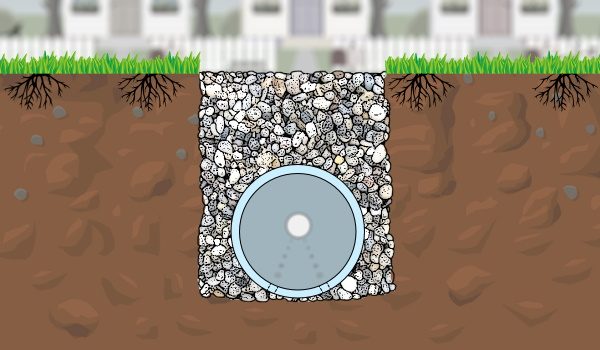

The mathematical model relies on basic geometric formulas adapted for civil construction. First, the trench volume is calculated by multiplying its width, depth, and length. Next, the calculator accounts for the space occupied by the drain pipe using cylinder volume logic, where radius is derived from the chosen pipe outer diameter. Subtracting the pipe volume from the trench volume reveals the net gravel volume, which is then adjusted upward by a wastage percentage (typically 5 to 10 percent). Gravel weight is found by multiplying this adjusted volume by the aggregate density. Finally, geotextile filter fabric requirements are determined by mapping the surface area of the trench walls, floor, and pipe circumference.

Imagine you are installing a residential French drain that is 50 feet long, 1 foot wide, and 1.5 feet deep. First, find the total trench volume: 50 ft × 1 ft × 1.5 ft = 75 cubic feet. Assuming you use a 4-inch diameter pipe running the entire length, the pipe volume is approximately 4.36 cubic feet. Subtracting this from the trench volume leaves 70.64 cubic feet of space for gravel. If you add a 10% safety margin for aggregate wastage, your total gravel volume rises to roughly 77.7 cubic feet (or about 2.88 cubic yards). Multiplying this by standard washed gravel density gives you the total weight of gravel to order from your supplier.

Always maintain a consistent downward slope of at least 1 inch for every 8 to 10 feet of trench length to ensure gravity successfully pulls water away from your property. Never lay perforated pipe directly on native soil; always place a base layer of washed gravel first to prevent mud and silt from clogging the drainage holes. Finally, completely wrap your gravel and pipe assembly in a durable geotextile filter fabric to block fine dirt particles while letting water freely pass through.
