Elevation Grade Calculator

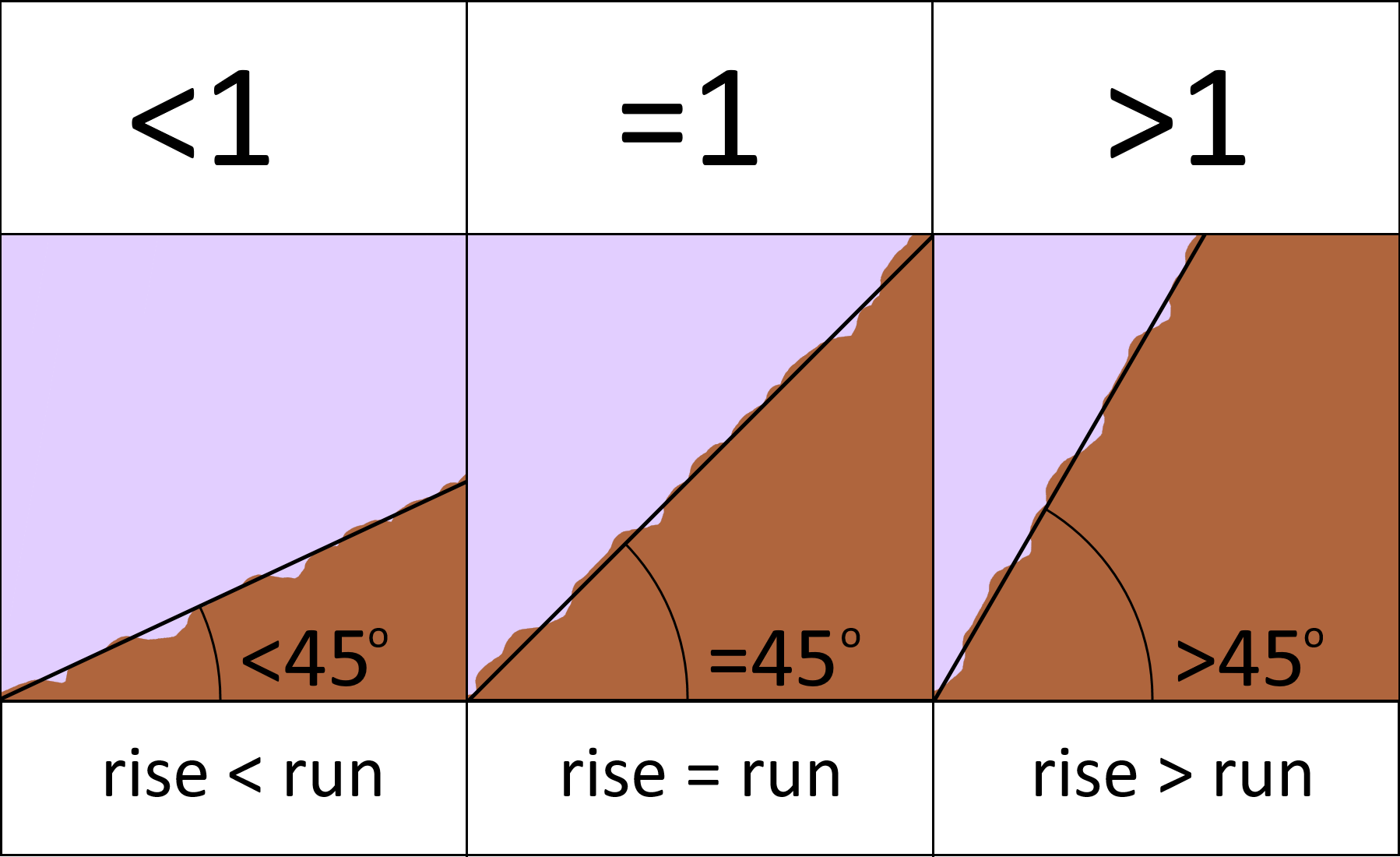

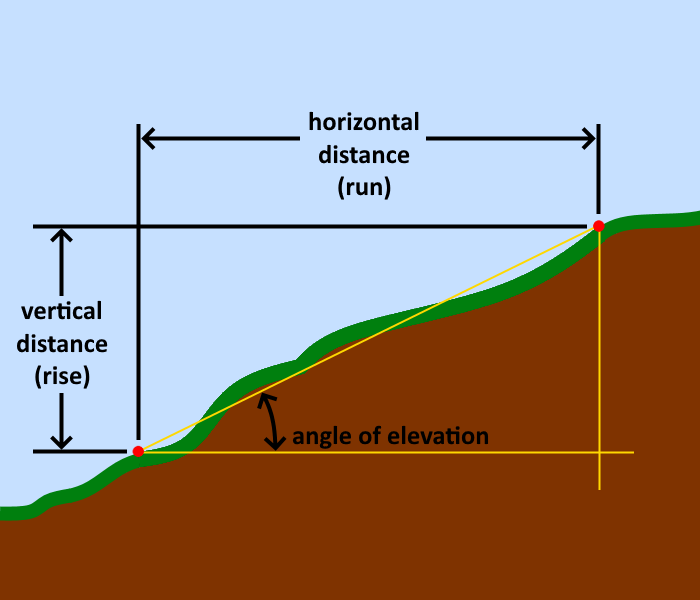

Elevation grade describes the steepness of a slope, usually expressed as a percentage, a ratio, or an angle in degrees. The fundamental formula divides the vertical distance (the rise) by the horizontal distance (the run): Grade = Vertical Distance / Horizontal Distance. To convert this basic decimal fraction into a percentage, you multiply the result by 100. Furthermore, to find the slope angle in degrees, the calculator takes the inverse tangent (arctan) of the grade value: Angle = arctan(Grade). This mathematical relationship ensures that whether you are working with architectural blueprints or field measurements, all conversions remain mathematically synchronized.

Imagine you are designing a wheelchair ramp or a driveway for a residential construction project. You measure a horizontal distance (run) of 20 feet and a vertical distance (rise) of 2 feet. First, apply the basic grade formula: 2 / 20 = 0.10. Next, convert this decimal into an elevation grade percentage by multiplying by 100, which gives you 10%. Finally, to find the incline angle, compute the inverse tangent of 0.10, yielding approximately 5.71 degrees. This means your project features a steady 10% grade slope, well within standard accessibility or drainage guidelines.

Always ensure your vertical and horizontal measurements use the exact same unit of measurement—mixing inches and feet will immediately invalidate your results. When planning outdoor landscaping or concrete pads, remember that a minimum grade of 1% to 2% is typically required to facilitate proper water runoff and prevent pooling. Finally, always verify local building codes, as maximum allowable grade percentages for ramps, driveways, and stairs are strictly regulated for safety.
