Concrete Stairs Calculator

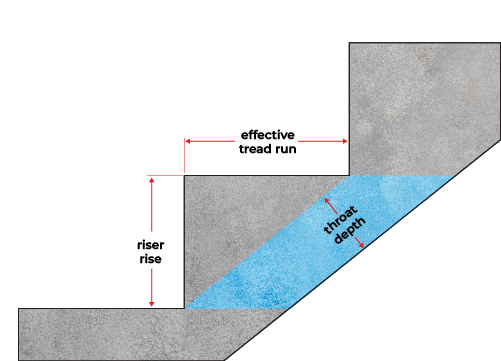

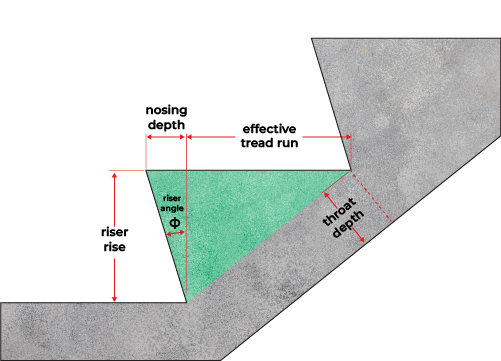

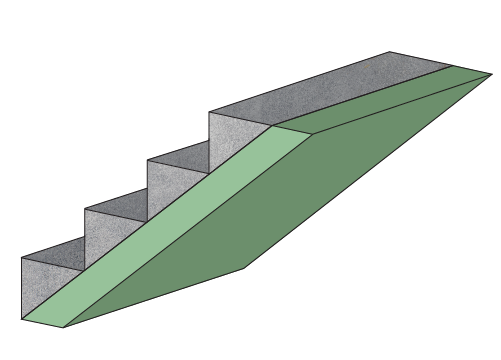

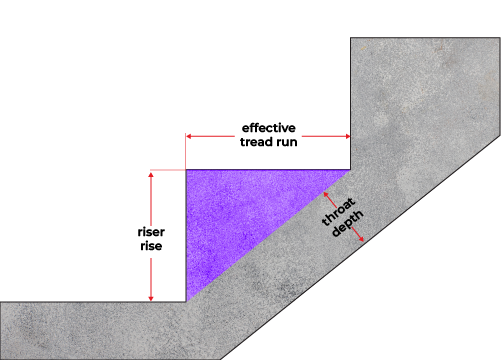

Designing and pouring concrete steps requires breaking the structure down into geometric components: the individual steps, the underlying carriage or throat, and any architectural nosings. The core calculations rely on fundamental geometric equations. For a single step profile, the triangular cross-sectional area of the step is computed as (rise * run) / 2, while the structural carriage beneath it is determined by the throat depth multiplied by the hypotenuse of the rise and run: throat_depth * sqrt(rise^2 + run^2). The total volume is found by multiplying the combined cross-sectional area of all n steps by the stair_width. Finally, a standard safety margin for waste is applied to determine the final ordering volume.

Let us walk through a practical scenario to illustrate how these formulas operate in the field. Imagine you are building a straightforward outdoor staircase with the following specifications: you need n = 5 steps, each with a rise of 7 inches (0.583 ft) and a run of 10 inches (0.833 ft). The stair_width is set to 3.5 feet, the throat_depth is 4 inches (0.333 ft), and we will include a waste factor of 10% (0.10).

First, calculate the carriage length component for one step: sqrt(0.583^2 + 0.833^2) = sqrt(0.340 + 0.694) = sqrt(1.034) = 1.017 ft. Next, compute the area of the carriage section: 0.333 ft * 1.017 ft = 0.339 sq ft. The triangular step area is (0.583 * 0.833) / 2 = 0.243 sq ft. Combining these gives a single step area of 0.339 + 0.243 = 0.582 sq ft. For 5 steps, the total step area is 5 * 0.582 = 2.91 sq ft. Multiplying by the stair width of 3.5 ft yields a base volume of 10.185 cubic feet. Factoring in the 10% waste margin, our final total volume is 10.185 * 1.10 = 11.20 cubic feet (approximately 0.41 cubic yards).

Account for Waste: Always add a minimum of 5% to 10% extra volume to your calculation. Spillage, uneven sub-grades, and form deflection can easily cause you to run short during a pour.
Build Rigid Framework: Concrete is exceptionally heavy and exerts massive lateral pressure on forms. Secure your stair stringers and risers with heavy-duty bracing to prevent bulging or blowouts.
Check Local Building Codes: Municipal codes strictly regulate maximum rise heights and minimum run depths to ensure pedestrian safety. Always verify local regulations before cutting your forms.
