Concrete Block Fill Calculator

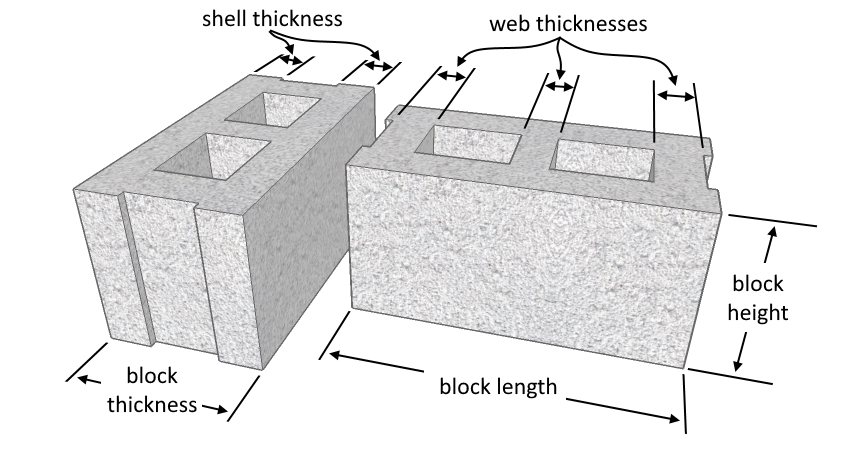

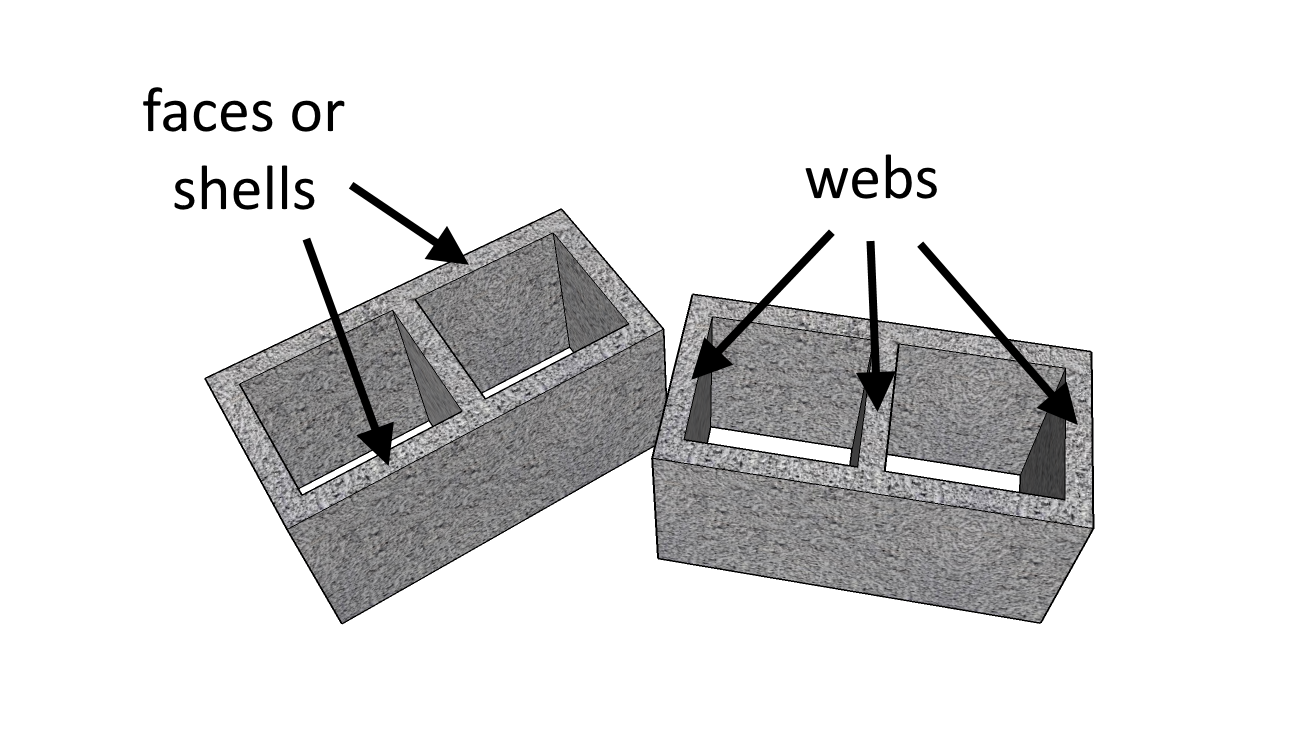

Calculating block fill requires determining the empty void space inside each hollow concrete masonry unit (CMU). First, the tool calculates the total number of blocks needed based on the overall wall dimensions: blocksNeeded = (wallWidth * wallHeight) / (blockHeight * blockWidth). Next, the interior core volume is computed by subtracting the outer shell and internal web thicknesses from the block's overall dimensions: coreVolume = (blockWidth - 2 * outerWebThickness - n * innerWebThickness) * (blockThickness - 2 * shellThickness) * blockHeight. Finally, the raw fill volume is multiplied by a standard wastage factor (typically 5% to 10%) to account for spills and over-excavation: finalVolume = fillVolume * (1 + wastage).

Imagine you are building a retaining wall that is 10 feet long and 4 feet high using standard 8x8x16 inch concrete blocks (nominal dimensions, with actual block dimensions typically measuring 7.625" x 7.625" x 15.625"). Assuming a standard core configuration with a net core void volume of approximately 0.22 cubic feet per block, let us walk through the math. First, you calculate the number of standard blocks required for a 40 square foot wall, which equals roughly 45 blocks. Next, multiplying the core void volume by 45 gives a raw fill volume of 9.9 cubic feet. Adding a standard 10% wastage factor (9.9 * 1.10), your final required concrete volume is 10.89 cubic feet, or about 0.40 cubic yards.

Always factor in a 5% to 10% wastage allowance to account for spillage, uneven sub-grades, and slight over-pouring in foundation trenches. When filling cores taller than 4 feet, pour the concrete in lifts and puddle or vibrate the mix thoroughly to eliminate air pockets and ensure complete structural bonding around reinforcing rebar. Finally, make sure your grout or fine concrete mix has a high enough slump (usually 8 to 10 inches) so it flows easily into narrow web spaces without bridging.
