Bowl Segment Calculator

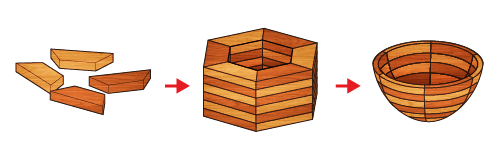

Constructing a segmented wooden bowl requires strict geometric precision. The foundational formula relies on the number of segments ($N$) chosen for a complete $360^ ext{degree}$ ring. The cutting angle for each side of an individual segment is half of the interior angle, expressed in radians as $\theta_{\text{cut}} = \frac{\pi}{N}$. Using trigonometric functions like tangent and sine, the calculator determines the exact inner and outer lengths of each trapezoidal block. For instance, the outer segment length is derived using the outer radius ($R_{\text{outer}}$) and fudge factors to account for blade kerf or sanding allowances: $\text{Segment Outer Length} = 2 \times R_{\text{outer}} \times \tan(\frac{\pi}{N})$. Similarly, segment thickness and ring circumferences are calculated to maintain structural integrity across all stacked layers.

Let us walk through a practical scenario where you want to build a single woodturning ring with an outer diameter of 10 inches, a ring thickness of 0.75 inches, and utilizing 12 distinct segments. First, determine the outer radius: $10 \div 2 = 5$ inches. Next, calculate the cutting angle by dividing $\pi$ by 12 segments, which yields approximately $0.2618$ radians or $15^ ext{degrees}$. Using the outer length formula, we compute $2 \times 5 \times \tan(\pi / 12) \approx 2.679$ inches for the outer edge of each piece. For the inner dimensions, the inner diameter is calculated as $10 - (2 \times 0.75) = 8.5$ inches, giving an inner radius of $4.25$ inches. Applying the inner segment formula yields the exact shorter parallel side of your trapezoid, ensuring your lathe turning blank fits together without gaps before shaping.

Precision in your saw setup is vital; even a half-degree error in your miter saw cutting angle will compound across multiple pieces, resulting in unsightly gaps in your ring. Always factor in blade kerf (the material lost to the saw blade width) using fudge factors to ensure your calculated lengths match your actual finished stock. Additionally, alternate the grain orientation of your wood segments when gluing up rings to enhance structural stability and minimize future wood movement caused by humidity shifts.
