Board and Batten Calculator

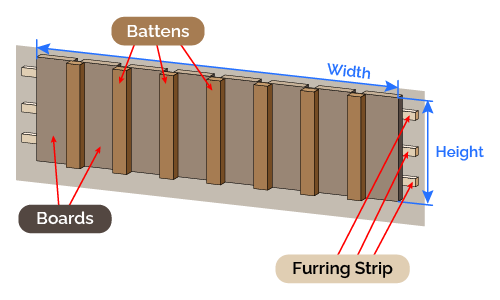

The calculation relies on geometric principles and linear measurements of your project space. First, the total wall area is determined by multiplying the wall width by the wall height. The number of wider boards required is calculated by taking the wall width (converted to inches), adding the desired board spacing, and dividing by the combined width of a single board plus the spacing gap. The number of narrower battens is typically one less than the total number of boards. Finally, total linear footage for boards and battens is computed by multiplying individual counts by wall height, then subtracting the square footage of any windows or doors.

Imagine you want to install a board and batten accent wall that is 12 feet wide (144 inches) and 9 feet tall. You plan to use boards that are 8 inches wide, battens that are 2 inches wide, and leave a 2-inch spacing gap between each board. First, we find the total number of boards by dividing the adjusted wall width by the combined board and gap width: 146 inches divided by 10 inches equals approximately 14.6, which rounds up to 15 boards. Since battens sit between or over the gaps, you will need 14 battens (15 boards minus 1). Multiplying these counts by the 9-foot wall height gives you the total linear material required for your project.

Always order 10 to 15 percent extra material to account for miscuts, knots, and natural wood splitting. Measure your wall width at multiple points—top, middle, and bottom—to check for out-of-square framing before finalizing your material calculations. Finally, plan your layout symmetrically from the center of the wall outward rather than starting flush from one corner to ensure a balanced aesthetic.
