Birdsmouth Cut Calculator
Created by Kaushik RabadiyaLast updated: September 24, 2026Birdsmouth cut instantly calculates results using building width, heel cut, height above plate. Use the calculator above for instant answers in your browser.

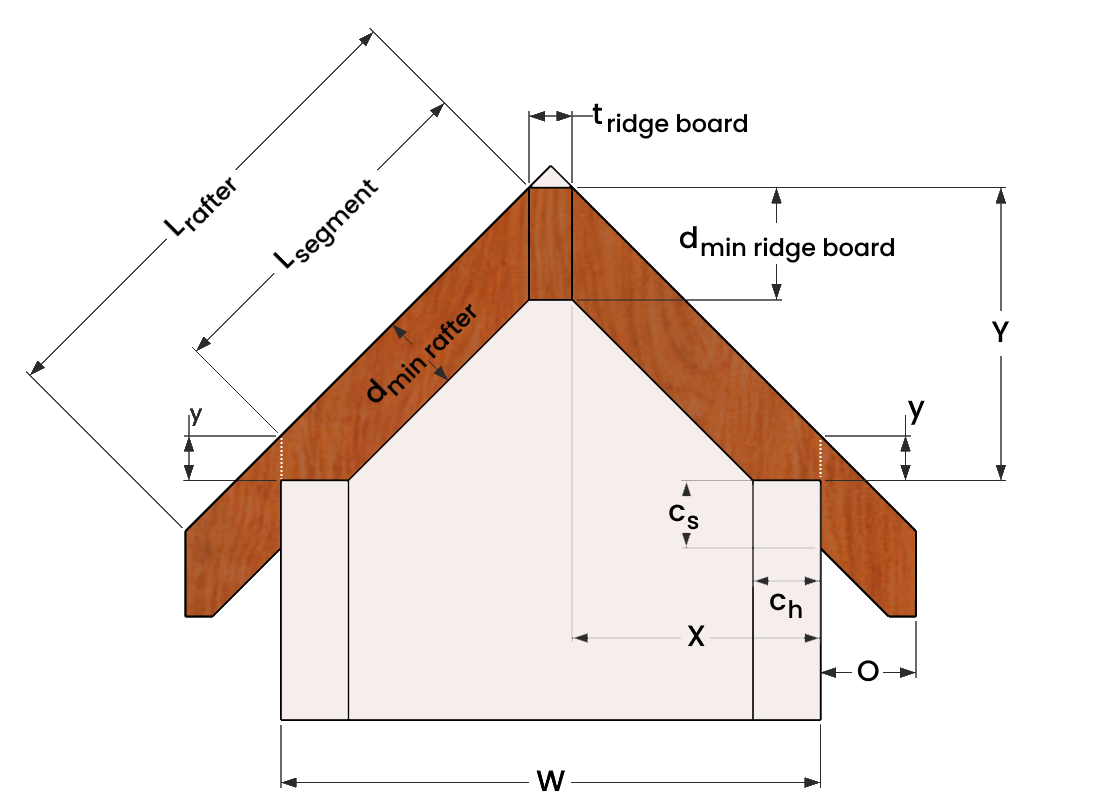

Accurate roof framing relies on precise joints, making the birdsmouth cut an essential carpentry milestone. This calculator determines critical layout dimensions including seat cut length, heel cut depth, and total rafter length based on your building width and roof pitch. Carpenters, builders, and DIYers use this tool to eliminate guesswork, ensure structural stability, and guarantee a flush fit between roof rafters and wall top plates.
How the Birdsmouth Calculation Works
The mathematical foundation of a birdsmouth joint relies on right-angle trigonometry and the pitch of the roof. First, the pitch angle is established using the roof pitch ratio (rise over 12 inches) via the formula tan(pitch_angle) = roof_pitch_x_12 / 12. The rafter segment run is calculated as half of the building width minus half the ridge thickness: rafter_segment_run = (building_width - ridge_thickness) / 2. The rafter segment rise follows as rafter_segment_rise = tan(pitch_angle) * rafter_segment_run. The seat cut and heel cut dimensions are then derived from the chosen heel depth, ensuring the rafter maintains structural integrity while resting securely on the wall plate.
Worked Calculation Example
Consider a garage framing project with a building width of 24 feet (288 inches), a ridge thickness of 1.5 inches, and a roof pitch of 6 in 12. First, we find the pitch angle where tan(pitch_angle) = 6 / 12 = 0.5. The horizontal run for the main rafter segment is (288 - 1.5) / 2 = 143.25 inches. Multiplying this run by the pitch ratio gives a rafter segment rise of 143.25 * 0.5 = 71.625 inches. If you select a heel cut depth of 1.5 inches, the horizontal seat cut becomes 1.5 / 0.5 = 3 inches. Adding any desired overhang extends the final rafter length to safely span from the ridge board to beyond the exterior wall.
Framing Best Practices and Guidelines
Always verify your roof pitch measurements twice before marking your lumber, as even a minor error compounds over a long span. Never make a birdsmouth cut deeper than one-third of the total rafter depth to avoid compromising the structural load capacity of the roof. Additionally, always account for the thickness of the ridge board when calculating your initial rafter run to keep your ridge alignment straight and true.
FAQs
What are the purposes of a birdsmouth cut?

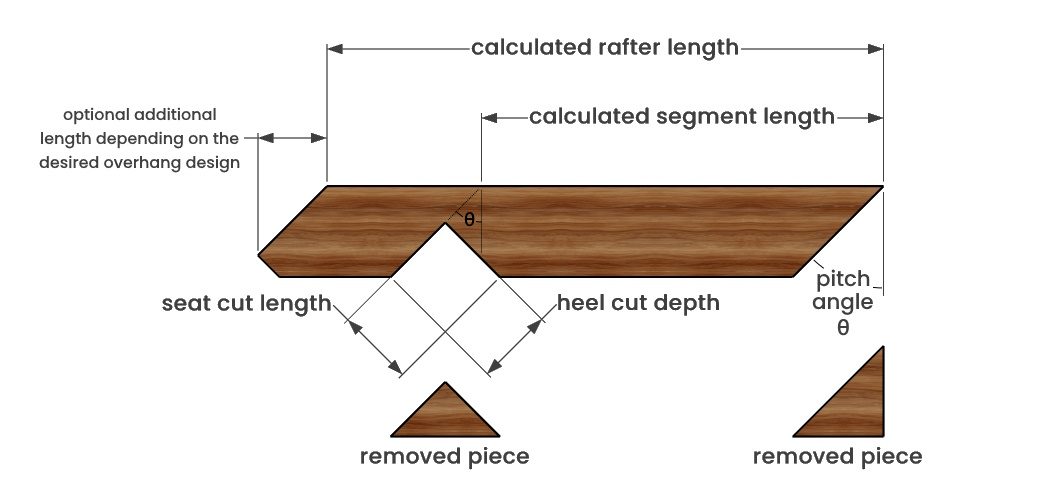

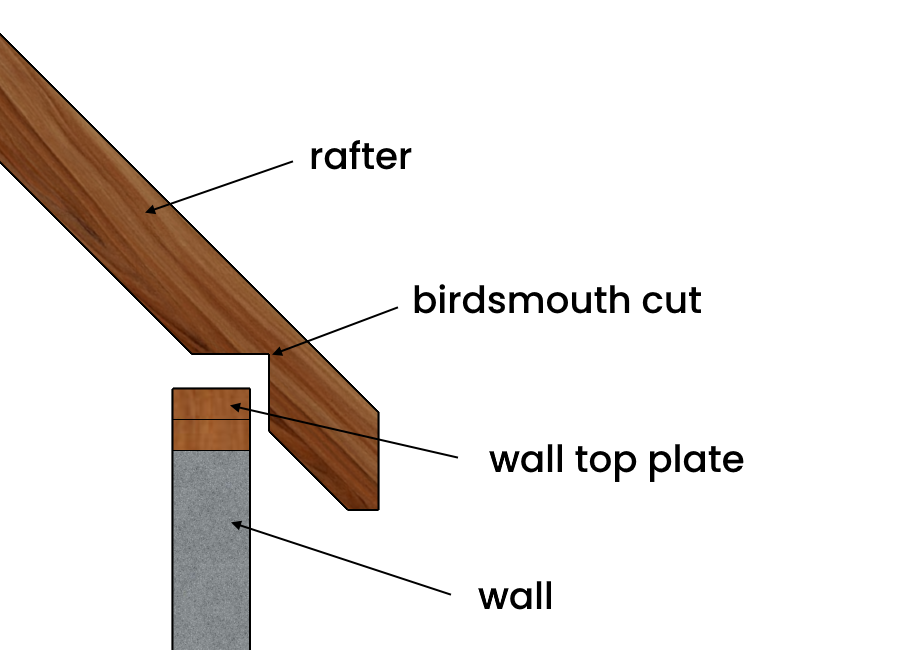

A birdsmouth cut creates a flat, horizontal platform (the seat cut) that rests securely flat on top of the wall plate, paired with a vertical face (the heel cut) that bears against the outside edge of the wall. This dual-surface notch distributes the downward gravity load of the roof evenly onto the vertical walls and prevents the rafters from sliding outward.
How do I find the heel cut depth of a birdsmouth cut?
The heel cut depth is typically chosen based on the overall dimensions of your rafter lumber. Standard building codes dictate that the heel depth should not exceed one-third of the total rafter depth to preserve timber strength. Once you select a safe heel depth, you can calculate the corresponding seat cut using the tangent of the roof pitch angle.
What is the minimum ridge board depth for a 12-inch rafter depth?
The ridge board should generally match or exceed the plumb cut depth of the connecting rafters to provide full face-nailing contact. For a 12-inch rafter, the ridge board should ideally be at least a standard 2x12 nominal lumber board (measuring 11.25 inches actual depth) or larger to ensure adequate structural connection points for opposing rafter pairs.
Is birdsmouth cut necessary?
Yes, cutting a birdsmouth is essential for standard stick-built conventional framing. Resting a sloped rafter directly on a flat top plate creates a dangerous point-load connection with very little contact area. The birdsmouth joint ensures maximum surface area contact, stabilizing the roof structure against wind lift and heavy snow loads.
Formula verified against ACI/ASTM engineering standards — all calculations use deterministic, standards-based formulas.
