Beam Deflection Calculator

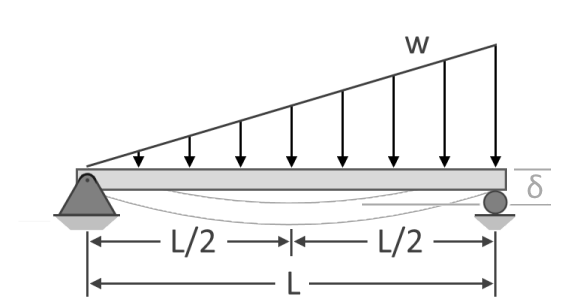

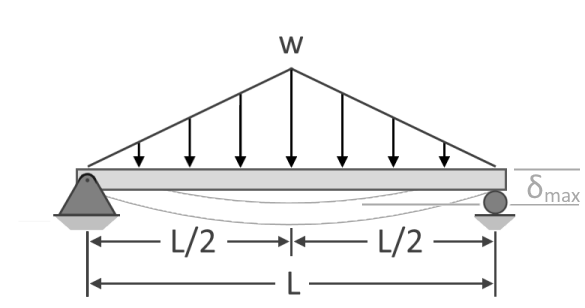

Beam deflection is governed by the principles of mechanics of materials. The core metric determining resistance to bending is flexural rigidity, calculated as the product of the modulus of elasticity (E) and the area moment of inertia (I), represented as EI. Depending on the load configuration—whether it is a uniform load, a point load at any point, or a moment load—different multipliers and polynomial equations are applied. For a simply supported beam under a uniform load, the maximum deflection occurs at the center and is proportional to the fourth power of the span, divided by the flexural rigidity.

Consider a simply supported steel beam with a total span of 4 meters (4000 mm). Assume a modulus of elasticity (E) of 200 GPa and an area moment of inertia (I) of 8.5 x 10^6 mm^4, giving a flexural rigidity of 1.7 x 10^12 N*mm^2. If a uniform load (w) of 5 kN/m is applied across the entire 4-meter span, the deflection formula utilizes the span length to the fourth power. Plugging these parameters into the uniform load equation yields a maximum central deflection of approximately 5.88 mm. This tells the engineer that the beam will sag just under 6 millimeters, which can then be checked against allowable deflection limits like L/360.

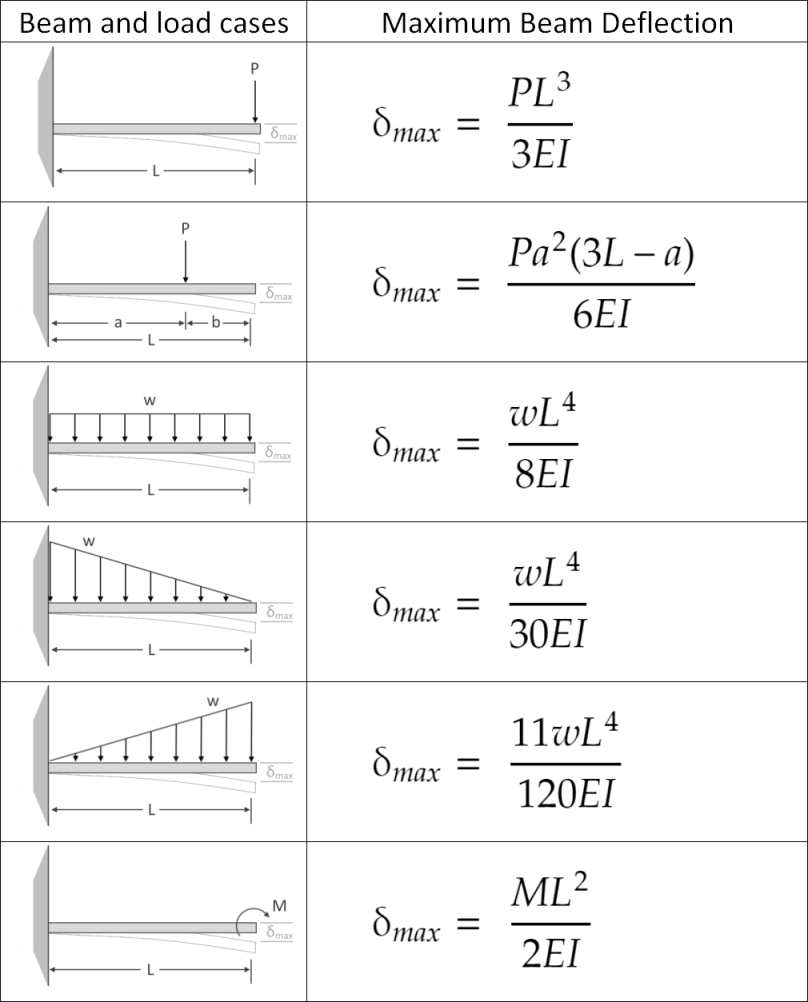

Always ensure your input units are consistent throughout the calculation, converting meters to millimeters or kilonewtons to Newtons where necessary. Verify boundary conditions carefully; a simply supported beam behaves very differently under loads compared to a cantilevered or fixed-end beam. Lastly, always cross-reference your calculated maximum deflection against local building codes to ensure long-term structural integrity and aesthetic comfort.
