Angle of Depression Calculator

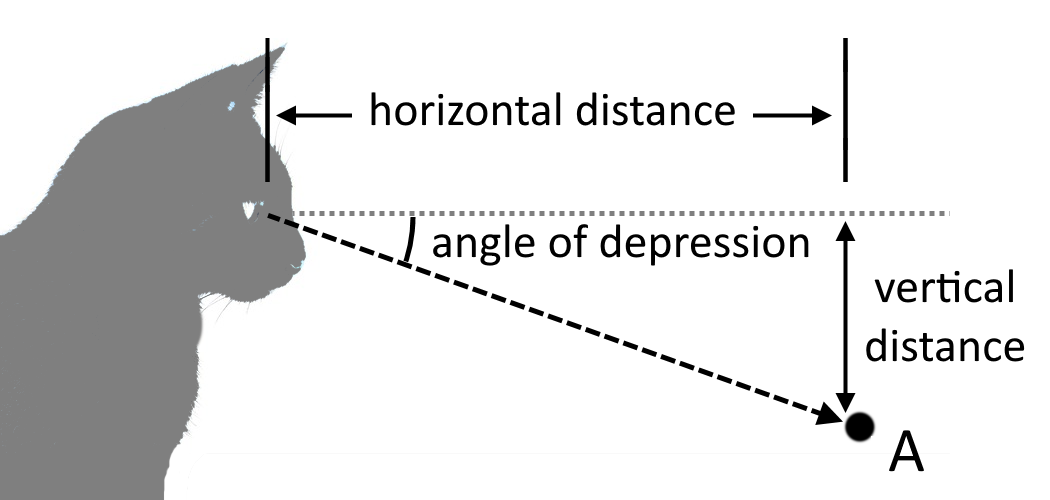

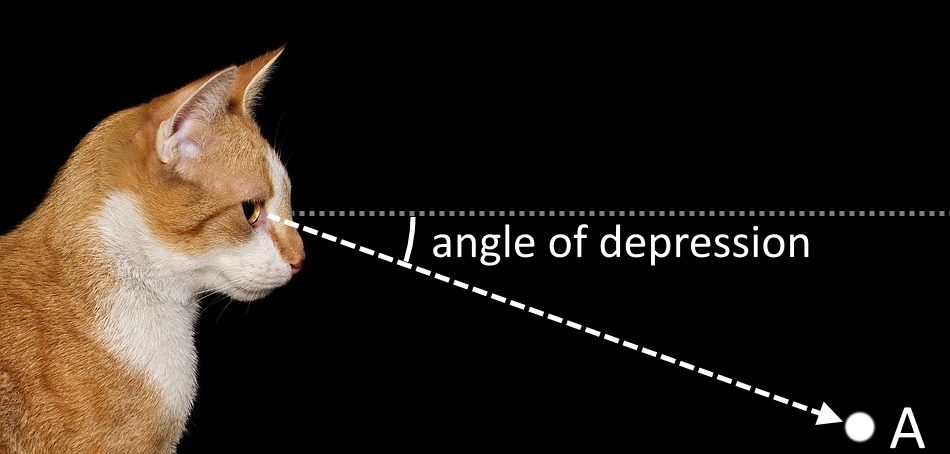

The calculation relies on fundamental trigonometry using right-angled triangles. When you stand at an elevated position, your horizontal line of sight forms a right angle with the vertical drop to the ground. The ratio of the vertical distance (the side opposite the angle) to the horizontal distance (the side adjacent to the angle) gives the tangent of the angle. The mathematical formula is expressed as: Angle = arctan(Vertical Distance / Horizontal Distance). Converting this result from radians to degrees gives the final angle of depression.

Imagine you are standing on a cliff and need to calculate the angle of depression down to a survey marker below. Your vertical distance (drop) is 50 feet, and the horizontal distance from your position to the marker is 120 feet. First, divide the vertical distance by the horizontal distance: 50 / 120 = 0.4167. Next, calculate the inverse tangent (arctan) of 0.4167, which yields approximately 0.3948 radians. Converting this value to degrees gives an angle of depression of 22.62 degrees. This precise figure allows you to set up your leveling instruments or guide equipment accurately.

Always ensure your horizontal and vertical distance measurements are recorded in the same unit of measurement (such as feet or meters) before inputting them into the calculator. Watch out for uneven terrain; always measure true horizontal distance rather than slope distance unless your trigonometric workflow specifically accounts for it. Cross-verify your results using secondary site lines whenever possible to minimize cumulative measurement errors.
