Angle Cut Calculator

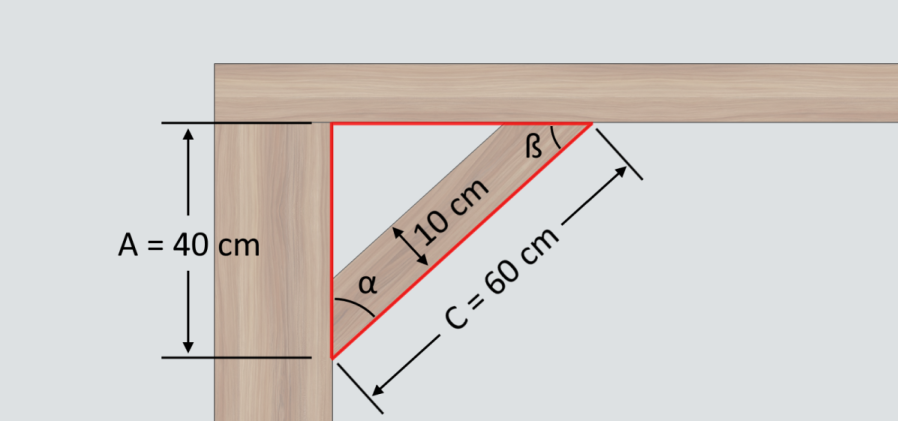

This calculator relies on fundamental trigonometric functions and right-triangle geometry to bridge the gap between plank thickness, cut lengths, and target angles. The core mathematical relationships use trigonometric identities such as sine, cosine, and tangent. For instance, the primary acute angles alpha and beta always sum to 90 degrees since they complement each other in a right-angled setup: pi / 2 = angleAlpha + angleBeta. Additionally, the relationship between plank thickness and plank length is governed by the sine function, such that sin(angleAlpha) = thickness / aPlank, where aPlank = aLong - aShort. Using these interlocking formulas, the calculator solves for missing variables once you input your known parameters.

Imagine you are working in your workshop and need to make a precise angled cut on a wooden board. Let us assume your board has a thickness of 2 inches, and your target angle alpha is set to 30 degrees. First, find the plank length difference using the sine relation: sin(30°) = 2 / aPlank. Since the sine of 30 degrees is 0.5, this means 0.5 = 2 / aPlank, which calculates out to an aPlank length of 4 inches (representing the difference between the long and short sides, or aLong - aShort = 4). Next, you can determine angle beta, which is simply the complement of alpha: 90° - 30° = 60°. Finally, use the tangent equation cLongA = thickness / tan(angleAlpha) to find the exact horizontal run of your cut, ensuring your saw blade is calibrated for a flawless fit.

Always measure your material twice before feeding it into your saw, accounting for the blade kerf (the width of the material removed by the saw blade). When working with softwood or hardwood, make sure your cutting blade is sharp to prevent splintering along the angled edges. If you are executing compound cuts, double-check that your miter gauge and bevel settings are locked securely before powering on your equipment.
