Cubic Cell Calculator

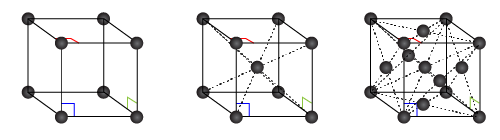

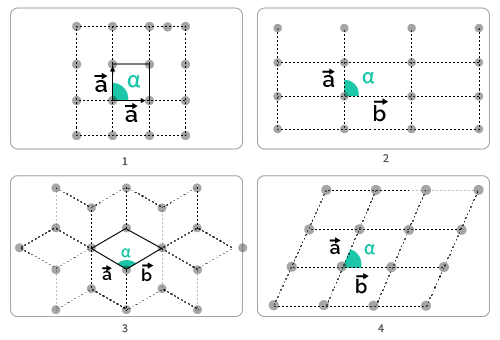

In crystallography, a cubic crystal system is defined by unit cells where all three lattice vectors are equal in length (a = b = c) and all interaxial angles equal 90 degrees. The geometry of the unit cell dictates how atoms pack together, categorized primarily into Simple Cubic (SC), Body-Centered Cubic (BCC), and Face-Centered Cubic (FCC) arrangements. The mathematical relationships between the atomic radius (r) and the edge length or lattice constant (a) depend strictly on how the atoms touch along specific crystal directions: For a Simple Cubic lattice, atoms touch along the cube edges, giving the formula a = 2r. For a Body-Centered Cubic lattice, atoms touch along the body diagonal, yielding a = (4r) / √3. For a Face-Centered Cubic lattice, atoms touch along the face diagonal, resulting in a = (4r) / √2.

Let us calculate the lattice constant for a Face-Centered Cubic (FCC) metal crystal with a known atomic radius of 0.128 nanometers (nm), which is typical for copper. First, identify the relevant formula for an FCC lattice: a = (4 × r) / √2. Next, substitute the atomic radius value into the equation: a = (4 × 0.128 nm) / 1.4142. Multiply the numerator to get 0.512 nm, and then divide by the square root of two. The resulting lattice constant (a) is approximately 0.362 nm, meaning the edge length of the unit cell for this crystal is 0.362 nanometers.

Always ensure your input units are consistent. If your atomic radius is given in picometers (pm), your resulting lattice constant will also be in picometers unless explicitly converted to nanometers or angstroms. Remember that crystal structures can be temperature and pressure-dependent, meaning experimental lattice constants may slightly differ from theoretical room-temperature models. Double-check your lattice type classification before computing, as confusing an FCC structure with a BCC structure will drastically alter your calculated results.
